Views: 0 Author: Site Editor Publish Time: 2026-02-02 Origin: Site
Water heating often accounts for 18% to 25% of total home energy usage, making it one of the largest utility expenses for modern households. While switching to solar energy is an obvious solution to reduce these costs, the market is fragmented into a confusing array of technical categories. Homeowners must navigate between active and passive systems, choose between flat plates and evacuated tubes, and decide between thermal transfer or PV-hybrid technologies.
The reality is that there is no single "best" solar water heater for every situation. A system designed to operate efficiently in the sunny, humid climate of Florida may suffer catastrophic pipe bursts or efficiency failures if installed in the freezing winters of Ohio. Selecting the wrong configuration can lead to wasted investment and significant maintenance headaches.
The goal of this guide is to move beyond basic definitions and help you compare systems based on critical real-world factors: freeze risk, roof load capacity, and Return on Investment (ROI). By understanding these distinctions, you ensure that you do not purchase an over-engineered system for a mild climate or an under-protected one for a region with harsh winters.
Climate Dictates Choice: In freeze-prone areas, Indirect Active or Drainback systems are mandatory. Passive systems are strictly for mild climates.
The Modern Shift: For homes with ample roof space, Solar Hybrid Heat Pump Water Heaters (PV + Heat Pump) are replacing traditional thermal systems due to lower maintenance.
Efficiency vs. Space: Traditional solar thermal collectors are 4x more efficient per square foot than PV panels, making them the superior choice for homes with limited roof space.
Material Matters: Look for 316L stainless steel tanks to prevent corrosion in pressurized systems.
To choose the right system, you must first distinguish between the fundamental operating mechanisms. These technologies determine how the water moves, how it is heated, and how much maintenance the system will require over its lifespan.
Active systems are the standard for year-round efficiency in variable climates. They utilize electric pumps and electronic differential controllers to circulate water or a heat-transfer fluid (like glycol) through the collectors.
These systems are best suited for cold climates, large families that require consistent water pressure, and retrofit scenarios where the storage tank must remain indoors while the collectors sit on the roof. The controller actively monitors the temperature difference between the roof collector and the tank. When the collector is hotter, the pump engages.
The primary trade-off is complexity versus control. You gain higher efficiency and reliable freeze protection, but you also introduce moving parts. Pumps can eventually fail, and the system relies on the electrical grid to function unless you have a battery backup. However, for households needing a robust supply of hot water regardless of the weather, active systems are often the superior choice.

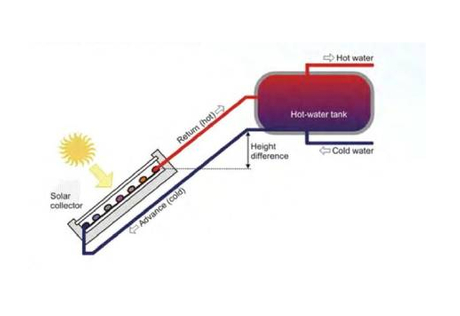

Passive systems rely entirely on thermodynamics—specifically convection and gravity—to move water. They contain no pumps, no sensors, and no complex electronic controls. As water heats up, it naturally rises into a storage tank located above the collectors.
Common types include the Integrated Collector Storage (ICS) and Thermosyphon systems. These are ideal for "Sunbelt" regions, off-grid cabins, and projects with budgets under $3,000. Because there are no mechanical parts to break, passive systems are ultra-reliable and can last for decades with minimal maintenance.
However, the trade-off involves weight and thermal retention. The storage tank is often located on the roof, placing a significant load on your structural rafters. Additionally, because the tank is exposed to the elements, there is a risk of heat loss to the ambient air at night, especially in uninsulated models.
A significant shift is occurring in the market with the adoption of the solar hybrid heat pump water heater. Instead of circulating fluid through pipes on the roof, these systems use standard solar photovoltaic (PV) panels to generate electricity. This electricity powers a high-efficiency Heat Pump Water Heater (HPWH) located on the ground or in a garage.
This technology is trending because it eliminates the need for roof plumbing, which reduces the risk of leaks. HPWHs act as "thermal batteries," utilizing excess solar energy generated during the day to superheat the water for evening use.
The general consensus among energy experts and communities like Reddit is to avoid electric tankless heaters when going solar. Tankless electric units create massive amperage spikes that most solar inverters cannot handle. In contrast, a heat pump system draws low, steady power, making it the perfect partner for solar PV.
Once you choose the technology, you must select the hardware that sits on your roof. The collector is the engine of the system, and its design dictates how well it captures heat in different weather conditions.

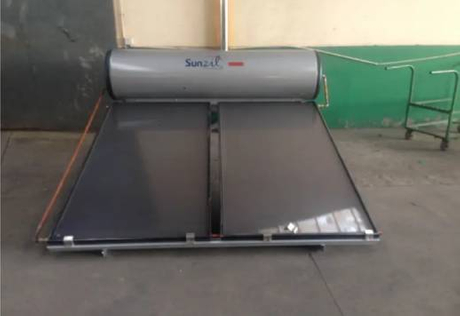

The flat plate collector is the traditional workhorse of the industry. It consists of an insulated, weatherproof box containing a dark absorber plate covered by tempered glass.
These collectors deliver the best performance in full sun and during summer months when direct radiation is high. They are robust, simpler to maintain, and widely used in standard active systems. If you live in a climate with mild winters and plenty of direct sunlight, the lower cost and high durability of flat plates make them a logical choice.
For more challenging environments, the Integrated heat pipe solar water heater—commonly known as an evacuated tube collector—offers distinct advantages. This design features rows of glass tubes, each containing a vacuum seal that acts like a thermos bottle. This vacuum layer virtually eliminates heat loss to the outside air.
Performance is superior in cloudy, windy, or freezing conditions. Even if the outside air is freezing, the vacuum protects the heat inside the tube. Furthermore, the cylindrical shape of the tubes acts as a passive tracking mechanism. This "Incident Angle Modifier" allows the tubes to gather sunlight effectively from early morning to late afternoon, whereas flat plates are most effective only when the sun is directly overhead.
The plumbing configuration defines the pressure at which the water is delivered and how the system protects itself from environmental extremes. This is often the deciding factor for system longevity.
In a pressurized system, mains water pressure is maintained throughout the entire loop. This ensures that you get "hotel-style" shower pressure and makes the system fully compatible with modern home fixtures and mixing valves.
The downside is the stress placed on the components. The tank and panels are under constant pressure, which increases the risk of leaks if weak materials are used. To ensure longevity, it is critical to select a 316L stainless steel solar water heater tank. This specific grade of stainless steel offers superior resistance to corrosion and chloride, which is essential for pressurized vessels holding potable water.
A non pressure solar water heater operates on a different principle. The tank is open-vented to the atmosphere, meaning the water is not under mains pressure. Hot water falls to the tap via gravity or is boosted by a small pump on the outlet side.
The pros are significant: these systems are much cheaper to manufacture and purchase. Since the tank is not under stress, it generally has a longer lifespan and is less prone to catastrophic rupture. However, users must accept lower water pressure unless a booster pump is installed. Additionally, the open vent can sometimes lead to evaporation issues or require manual topping up in very basic designs.
The Drainback system is often considered the most robust option for climates with extreme temperature swings. In this configuration, water is only pumped through the collectors when there is heat to be gained. As soon as the pump turns off—or if power fails—gravity drains all the water from the collectors back into a reservoir tank located in a conditioned space.
This mechanism matters because it provides 100% freeze protection and 100% overheating protection without the use of toxic chemicals like antifreeze (glycol). There is no water in the pipes to freeze in winter, and no fluid to stagnate and boil in summer. It is ideally suited for seasonal homes where the system may sit idle for months.
Selecting the right unit involves filtering your options through three primary constraints: your local climate, your available roof space, and your household demand. Use this framework to narrow down your decision.
Your geographic location is the most critical filter. Ignoring freeze risk is the number one cause of system failure.
Severe Cold: If you experience hard freezes, you must use an Active Indirect system using propylene glycol or a Drainback system. Evacuated tubes are highly recommended here due to their insulation properties.
Mild/Occasional Freeze: In areas that only dip below freezing occasionally, Pressurized systems with active recirculation valves (which pump warm water to prevent freezing) or simple Thermosyphon units with electric backup elements are sufficient.
No Freeze (Tropical): In regions that never freeze, a Direct Active system or a basic ICS (Batch) collector is the most cost-effective and efficient solution.
Efficiency is often misunderstood. It isn't just about energy conversion; it is about energy density per square foot of roof space.
| Constraint | Recommended Technology | Why? |
|---|---|---|
| Limited Roof Space | Solar Thermal | Thermal collectors convert ~63% of sunlight into heat. PV panels only convert ~15–20% into electricity. You need roughly 6x the space for PV to heat the same amount of water as a thermal collector. |
| Ample Roof Space | PV + Heat Pump | Running wires is easier than running plumbing. If you have the space, PV panels can power the water heater and then switch to powering lights or appliances once the water is hot. |
Finally, consider your usage patterns. A family with a heavy morning load requires a large storage capacity (80+ gallons) to ensure heat collected the previous day is still available. Conversely, for intermittent use, such as a vacation home, avoid complex Active systems. The "parasitic load" of the pump running when no one is home can destroy the financial return on investment.
Many guides promise instant savings, but a realistic financial analysis must look at the Total Cost of Ownership (TCO). This includes upfront costs, ongoing maintenance, and replacement parts.
Budgeting varies wildly depending on whether you are taking a DIY approach or hiring a professional team.
DIY/Passive Kits: Simple non-pressure or passive kits range from $1,500 to $3,000. These offer the fastest payback but require you to handle the installation labor.
Installed Active Systems: A professionally installed active pressurized system typically costs between $6,000 and $11,000. This price includes permitting, plumbing, and labor warranties.
Hybrid (Heat Pump + Dedicated PV): A modern hybrid setup usually lands between $5,000 and $8,000 after federal or local incentives are applied.
Solar thermal systems are not "install and ignore" appliances. Active systems generally require a pump replacement every 5 to 7 years. If you use a glycol system for freeze protection, the fluid must be flushed and replaced every 3 to 5 years to prevent it from turning acidic and eating through your collector pipes.
Regardless of the system type, the sacrificial anode rod inside the tank is a critical maintenance item. In high-quality units like a 316L stainless steel solar water heater, the tank is naturally resistant to corrosion, but checking the anode annually remains a best practice to ensure the vessel lasts its full 20-year potential.
The payback period typically ranges from 4 to 8 years, but this depends heavily on your local utility rates. A vital warning for homeowners: if you are currently heating water with natural gas (which is historically cheap), your solar ROI will be slower than if you are displacing expensive electric resistance heating. Calculating your current cost per kWh or therm is essential before signing a contract.
Solar thermal technology is far from dead, but it has evolved into a specialized solution for specific use cases. It remains the undisputed king of efficiency for homes with limited roof space or high hot water demands. However, the rise of affordable photovoltaics has introduced compelling hybrid alternatives.
For most homeowners, the decision follows a clear logic. Choose an Active Indirect or Drainback system if you live north of the Sunbelt and need reliable protection against the cold. Opt for Passive/Non-pressure units only if you live in a warm climate and have a high tolerance for temperature fluctuations. If you prefer a "set it and forget it" lifestyle and have plenty of roof space, a PV + Heat Pump combination offers a low-maintenance path to renewable hot water.
Before requesting quotes, assess your roof’s azimuth and potential shading. Understanding your physical constraints is the first step toward a system that pays for itself.
A: Yes, but it requires specific components. Since the tank relies on gravity, the pressure will be low compared to the mains. To integrate it, you typically install a small booster pump on the hot water outlet to match the house pressure. Additionally, a float valve or assistant tank is used to automatically refill the non-pressure tank from the high-pressure mains without overflowing.
A: Flat plate collectors are rugged and can last 25+ years, though they are harder to repair if a leak develops inside the box. Vacuum tubes are more fragile and can break during severe hail, but they are modular. If one tube breaks, the system continues to function, and you can replace just that single tube cheaply. Vacuum tubes generally last 15–20 years depending on the seal integrity.
A: The panels do not collect heat at night, but the system "works" by storing the energy gathered during the day. The storage tank acts as a "thermal battery," which is heavily insulated to keep water hot for 24 hours or more. If properly sized, the heat collected in the afternoon will be sufficient for showers the following morning.
A: 316L is a marine-grade stainless steel containing molybdenum, which drastically increases resistance to chloride corrosion. In pressurized solar water heaters, the water sits in the tank at high temperatures, which accelerates corrosion in standard steel. Using 316L ensures the tank does not rust or leak prematurely, especially in areas with hard water or high chlorine content.
