In the growing effort to harness renewable energy, solar power stands out as one of the most accessible and sustainable options available. While photovoltaic panels that generate electricity are often the stars of the show, solar thermal systems that use sunlight to heat water offer equally important benefits, especially for residential, commercial, and industrial applications.
Among the various types of solar water heating technologies, heat pipe solar collectors have emerged as a high-efficiency solution. These systems are widely recognized for their excellent performance, even in less-than-ideal weather conditions, and are commonly used around the world where consistent, dependable hot water is essential.
This article will explain what heat pipe solar collectors are, how they work, and why they offer significant improvements to traditional solar water heating systems. We'll also explore their key advantages, ideal applications, and why companies like Changzhou Raven New Energy Technology Co., Ltd. are leading the way in manufacturing and innovation.

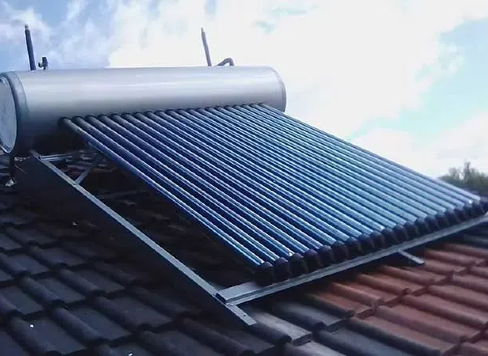

A heat pipe solar collector is a type of evacuated tube collector that uses heat pipe technology to absorb sunlight, convert it to heat, and efficiently transfer that heat to a water storage system. Unlike flat plate collectors, heat pipe systems are composed of multiple glass tubes that form an array, each containing a vacuum-sealed copper pipe inside.
The heat pipe functions like a thermal superhighway. Instead of water flowing directly through the collector tubes (as in flat plate designs), a sealed liquid inside the heat pipe evaporates when heated by the sun. This vapor rises to the top of the pipe, where it transfers heat to the system's circulating water via a manifold or heat exchanger, then condenses and cycles back down to repeat the process.
Though the internal mechanics may seem complex at first glance, the operation of a heat pipe collector is grounded in a few basic scientific principles—thermal conduction, phase change, and condensation. Here’s a simplified breakdown:
Sunlight passes through the outer glass tube and heats the absorber coating on the heat pipe inside.
The absorber coating is bonded to the copper heat pipe, which contains a small amount of working fluid (usually water with additives).
This fluid heats up quickly and evaporates at relatively low temperatures, rising to the condenser section of the pipe located in the system's header.
The vapor transfers its heat to the water or heat-transfer fluid in the system’s closed-loop manifold or tank.
After releasing its heat, the vapor condenses back into liquid and flows back down the pipe via gravity, repeating the cycle continuously.
This process allows for extremely efficient heat transfer, even during overcast days or colder weather. Because the fluid inside the heat pipe is sealed and never comes into contact with the domestic water supply, the system is not only efficient but also safe, clean, and low-maintenance.
Heat pipe collectors operate at higher thermal efficiencies compared to flat plate systems, especially under cool, cloudy, or windy conditions. The vacuum surrounding the heat pipe minimizes heat loss, allowing the collector to absorb and retain more solar energy.
The phase-change mechanism inside the heat pipe enables rapid and efficient heat movement from the tube to the water. This makes it possible to heat water more quickly, reducing energy waste and waiting times.
Because the system is closed and vacuum-insulated, it retains heat effectively. Even in freezing temperatures, the internal working fluid can vaporize at low boiling points and perform optimally, making heat pipe collectors a smart choice for year-round use.
The tube-based design allows for easy expansion of the system. Users can add or remove individual tubes without shutting down the entire setup, making repairs or scaling effortless.
Heat pipe systems are sealed and require little upkeep. The lack of moving parts and the isolation of the heat-transfer fluid reduce wear and tear, limiting the chances of failure or leaks.
Since water doesn't flow directly through the tubes, there's no risk of blockage, freezing, or scaling inside the collector. This indirect system increases longevity and safety, especially in regions with hard water or temperature extremes.
Due to their durability and efficiency, heat pipe solar collectors are used in a wide variety of settings:
Homeowners use them to heat domestic hot water for kitchens, bathrooms, and laundry. They are especially suitable for multi-story homes and families with high hot water demand.
Hotels, hospitals, and office buildings use solar water heating systems to cut energy costs and reduce reliance on gas or electric heaters. Heat pipe collectors help maintain consistent hot water supply across many units.
Factories and agricultural sites often require preheated water for washing, processing, or sanitation. Heat pipe collectors meet this demand in an environmentally friendly and energy-saving manner.
In areas without reliable electricity or gas infrastructure, solar thermal systems with heat pipe collectors provide a self-sufficient solution for hot water needs.
When selecting a solar water heating system, you’ll likely compare heat pipe collectors to other technologies—such as flat plate collectors and direct-flow evacuated tube systems. Here's how heat pipe collectors stand out:
Better performance in colder climates compared to flat plate systems.
Faster startup and heat response than water-filled tubes.
Lower maintenance risk, since no water circulates inside the collector tubes.
Improved durability, especially against scaling or corrosion from poor water quality.
However, they can be more expensive upfront due to complex materials and assembly. Despite the higher cost, the long-term energy savings and reduced maintenance often outweigh the initial investment.
Installing a heat pipe solar collector system involves some key steps:
Proper orientation: Install the collector facing true south (in the Northern Hemisphere) or true north (in the Southern Hemisphere) for maximum exposure.
Tilt angle: The ideal tilt equals your latitude angle to ensure year-round efficiency.
Heat exchanger compatibility: Since the fluid loop is indirect, ensure you have a heat exchanger-equipped tank.
Insulated piping: To prevent heat loss during transfer, all connecting pipes should be well insulated.
It’s advisable to consult with professional installers or product manufacturers to ensure that your system is correctly sized and configured for your specific hot water needs.
Although the cost of a heat pipe solar water heating system is higher than simpler models, it delivers long-term benefits that justify the investment:
Reduced utility bills
Lower carbon footprint
Consistent performance throughout the year
Low maintenance and long lifespan (often 20+ years)
Governments and utilities in many countries also offer rebates or incentives for installing solar water heating systems, which can significantly reduce the payback period.
Heat pipe solar collectors represent a powerful upgrade to conventional solar water heating systems. Their efficient design, quick thermal response, and reliability in diverse climates make them an ideal choice for households, businesses, and industries that need consistent hot water while reducing energy costs.
As sustainability becomes more important in energy planning, advanced solar thermal solutions like these will only become more prevalent. With companies like Changzhou Raven New Energy Technology Co., Ltd. leading the innovation, users around the world can enjoy the benefits of clean, efficient, and long-lasting solar water heating systems.
Whether you're retrofitting your home or planning a large-scale commercial installation, a heat pipe collector system may be the smartest investment in long-term efficiency, energy savings, and environmental impact.
