WHP030HW-R4
Solaraven
84186190

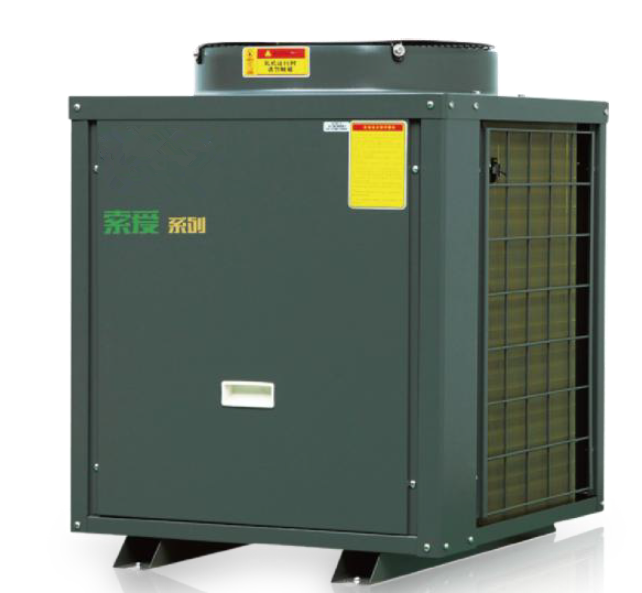

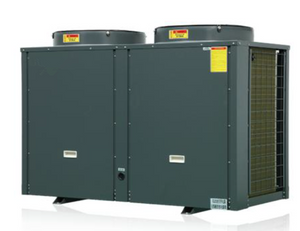

R410A fixed speed commercial heat pump is designed for hot water heating for the villas, hotels, hospital and schools, where need big capacity of hot water daily. It's max water heating temperature is 55℃，hot water output is from 258liter/ hour to 4429liter/hour. Heating capacity from 12KW to 206KW.
Commercial heat pump Features:
R410A refrigerant, enviromental friendly
Higher water temperature output up to 55℃
Adopt EVI technology, the operation ambient temperature can reach at -25℃
High pressure protection
Defrost automatically
With MODBUS communication
Adapt intelligent controller, full automactically operation
Through different installation, the system can be used for cooling or heating
Commercial heat pump system principle
Commercial hot water heat pump specification
| Model | WHP030HW-R4 | WHP030HW.3N-R4 | WHP050HW.3N-R4 | WHP100HW.3N-R4 | WHP150HW.3N-R4 | WHP200HW.3N-R4 | WHP250HW.3N-R4 | WHP300HW.3N-R4 |
| Heating performance condition: A20/15℃， W15~55℃ | ||||||||
| Heating capacity(KW) | 12 | 12 | 19 | 38 | 52 | 70 | 86 | 103 |
| Rated input power(KW) | 2.8 | 2.8 | 4.5 | 8.8 | 12.5 | 17 | 22.6 | 35.2 |
| COP | 4.29 | 4.29 | 4.22 | 4.32 | 4.16 | 4.12 | 3.81 | 2.93 |
| Hot water capacity(L/H) | 258 | 258 | 408 | 817 | 1100 | 1500 | 1850 | 2215 |
| Power supply | 220V/50HZ | 380V/50HZ | ||||||
| Waterproof grade | IPX4 | |||||||
| Max water heating temperature | 55℃ | |||||||
| Operating ambient temp. | -10℃~45℃ | |||||||
| Compressor | EMERSON Copeland Scroll | |||||||
| Inlet/outlet pipe size | DN25 | DN25 | DN25 | DN40 | DN40 | DN50 | DN50 | DN65 |
| Dimension(mm) | 680*680*870 | 680*680*870 | 770*770*780 | 1500*753*1080 | 1510*810*1530 | 1850*1000*2000 | 2000*1000*1850 | 2200*1100*2210 |
| Weight(KG) | 108 | 110 | 140 | 340 | 400 | 680 | 860 | 930 |
