| Quantity: | |
|---|---|
RNE-TS-50
Solaraven
8419120000

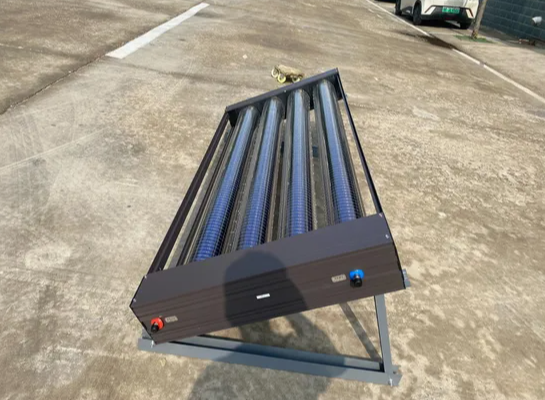

The tankless solar water heater from Solaraven (Model: RNE-TS-50) is a revolutionary solution designed to meet the demands of modern high-rise buildings and customized whole-house designs. Unlike traditional solar water heaters that rely on bulky separate tanks, this innovative system integrates heat storage and absorption into a single unit—its 137mm diameter solar vacuum tubes not only collect solar energy but also serve as built-in heat storage devices. By eliminating the need for an external or indoor water tank, it solves the aesthetic and space issues that make many real estate developers reject conventional models. This building-integrated design aligns perfectly with architectural quality and style, while enhancing green building ratings, making it a top choice for both residential and commercial projects.
Equipped with Φ137mm solar vacuum tubes, the system offers higher heating efficiency compared to flat panel collectors. Each tube houses a pressurized food-grade 304 stainless steel inner tank, ensuring dual functionality of heat collection and storage.
The integrated 304 stainless steel cylinder inside each vacuum tube eliminates leakage risks, while the pressurized design enhances stability and anti-freeze capabilities, suitable for various climate conditions.

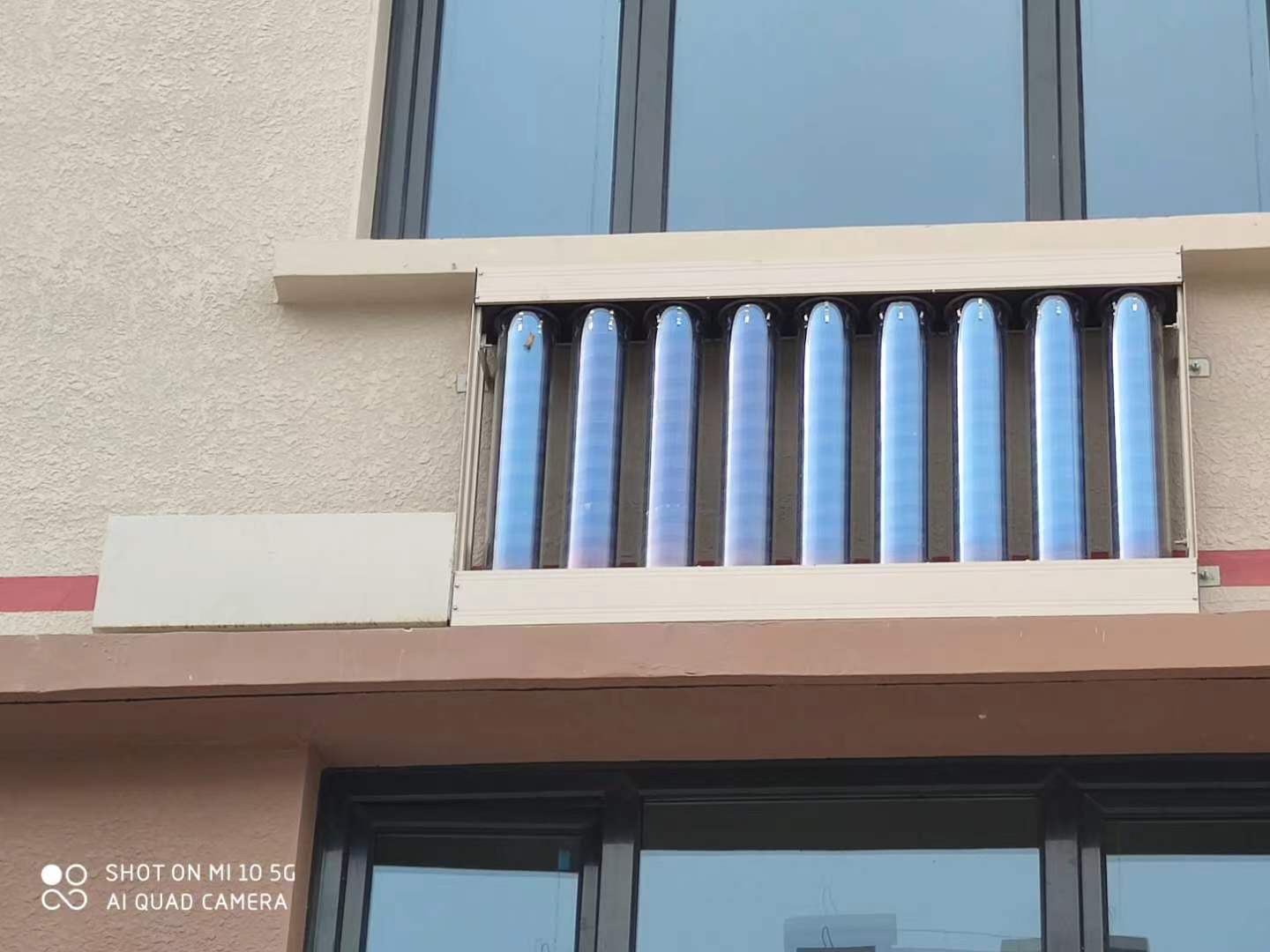

Designed for seamless embedding into buildings, the tankless structure avoids the "boil-like" external tanks or "tumor-like" indoor tanks of traditional models, preserving architectural beauty.

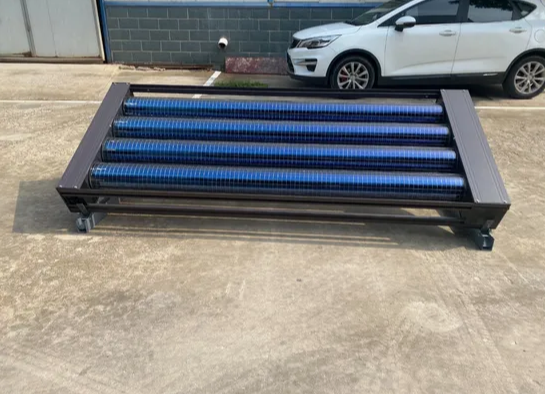

Supports vertical or horizontal installation on the ground, rooftop, terrace, or wall, adapting to diverse spatial constraints of high-rises, villas, and commercial buildings.
The integrated heat storage and absorption design enables rapid heating, providing instant hot water without waiting, meeting the needs of whole-house hot water usage.
Vacuum Tube Details | Collector Parameters | Capacity & Weight | Installation & Dimensions |
Length: 1860mm / 850mm | Quantity: 3-9 tubes | Capacity: 43L-95L | Installation Method: Vertical / Horizontal |
Diameter: Φ137mm | Size (L×W×H): 1120×175×1020mm to 2020×175×1150mm | Collector Weight: 58kg-120kg | Inner Size: Φ108×800mm / Φ108×1820mm |
- | - | Operating Weight: 101kg-215kg | - |
Brand: Solaraven | Model: RNE-TS-50 | Code: 8419120000 | Material: Aluminum alloy outer casing + 304 stainless steel inner tank |
Tankless solar water heater | ||||||||
Vacuum tube | Diameter | Collector | Collector | Capacity | Operating | Installation | Inner | |
Length(mm) | Quantity | |||||||
1860 | 3 | Φ137 | 2020*175*590 | 60 | 50 | 110 | Vertical | Φ108*1820 |
3 | Φ137 | 2020*175*625 | 60 | 50 | 110 | Horizontal | Φ108*1820 | |
4 | Φ137 | 2020*175*765 | 80 | 65 | 145 | Vertical | Φ108*1820 | |
4 | Φ137 | 2020*175*800 | 80 | 65 | 145 | Horizontal | Φ108*1820 | |
5 | Φ137 | 2020*175*940 | 100 | 80 | 180 | Vertical | Φ108*1820 | |
5 | Φ137 | 2020*175*975 | 100 | 80 | 180 | Horizontal | Φ108*1820 | |
6 | Φ137 | 2020*175*1115 | 120 | 95 | 215 | Vertical | Φ108*1820 | |
6 | Φ137 | 2020*175*1150 | 120 | 95 | 215 | Horizontal | Φ108*1820 | |
850 | 6 | Φ137 | 1120*175*1020 | 58 | 43 | 101 | Vertical | Φ108*800 |
7 | Φ137 | 1295*175*1020 | 68 | 50 | 118 | Φ108*800 | ||
8 | Φ137 | 1470*175*1020 | 77 | 58 | 135 | Φ108*800 | ||
9 | Φ137 | 1645*175*1020 | 87 | 65 | 152 | Φ108*800 | ||
Ideal for high-rises where external tanks ruin building appearance and indoor space is limited. Its compact, embedded design complies with property management requirements.
Perfectly matches personalized home designs, providing on-demand hot water for bathrooms, kitchens, and other areas without occupying living space.
Suitable for hotels, shopping malls, and office buildings, contributing to green building certifications and reducing energy costs with efficient solar utilization.
Widely favored by developers for enhancing project competitiveness. Improves green ratings and avoids aesthetic conflicts with building facades.
No separate water tank saves indoor and outdoor space; building-integrated design maintains architectural integrity, a key advantage over traditional tank models.
Food-grade 304 stainless steel inner tanks resist corrosion and leakage; pressurized structure ensures anti-freeze performance, extending service life.
Solar vacuum tubes deliver higher heating efficiency than flat panels, maximizing solar energy conversion and reducing reliance on electric or gas heating.
Multiple installation methods (vertical/horizontal, ground/wall-mounted) adapt to different project needs, simplifying construction and reducing installation costs.
Meets green building standards, helping projects qualify for environmental certifications and subsidies.
Ready to upgrade your hot water system with a space-saving, energy-efficient, and building-friendly solution? Inquire now for detailed quotes or add the Solaraven RNE-TS-50 tankless solar water heater to your basket! Whether you’re a real estate developer, homeowner, or project contractor, our team provides tailored technical support and installation guidance. Embrace green energy and enhance architectural value—contact us today to start your sustainable hot water journey!
