SR21L Solar Thermal Pump Station For Split Pressure Systems

SR21L Solar Thermal System Pump Station

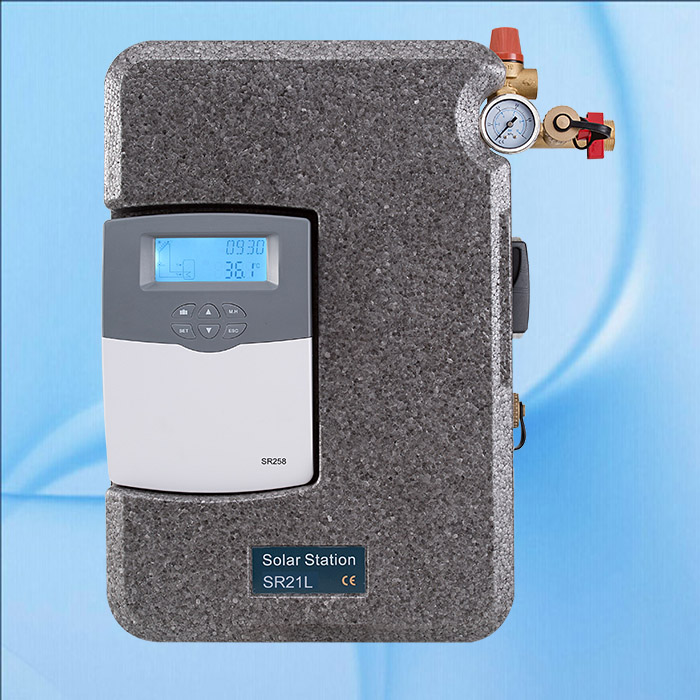

The SR21L solar pump station is an intelligent solar work station specifically designed for split pressure solar water heating systems. Engineered precisely as the SR21L for double pipelines with a conventional pump, this unit acts as the central nervous system for fluid and thermal management. The exterior features an EPP (Expanded Polypropylene) eco-friendly thermal insulation shell, which presents a dense, tactile surface that significantly minimizes heat loss into the surrounding environment. Internally, the core piping relies on heavy-duty brass fittings and resilient PTFE sealing rings, providing a solid, metallic durability that installers can feel during setup. By integrating industry-renowned circulation water pumps, such as WILO, alongside high-precision flow meters, the station ensures continuous, stable fluid transfer with minimal acoustic vibration.

Pre-assembled Core Components & Safety Mechanisms

This solar pump station is a preinstalled and leak-tested group of fitting for transferring heat from the collector to the storage tank. Every unit undergoes rigorous pressure testing before leaving the facility, ensuring that the heavy-duty brass connections remain completely dry and secure under operational stress. It contains important fittings and safety devices for the operation of the solar thermal system, organized intelligently for quick access and straightforward maintenance.

Integrated Control and Monitoring Devices

The internal architecture is designed to handle extreme operational conditions safely. The system comfortably supports a maximum working temperature of 120°C and a system pressure tolerance of up to 6 bar, making it highly capable of managing the demanding, high-temperature fluctuations typical in advanced solar arrays.

• Ball valves in flow and return: Engineered in combination with check valves to prevent gravity circulation, ensuring that thermal energy remains efficiently trapped in the storage tank during cooler nighttime hours.
• Air stopper: A highly accessible manual valve designated for manual bleeding of the solar thermal system, allowing technicians to quickly purge trapped air bubbles that could impede fluid dynamics.
• Electronic flow rate check: A sensitive diagnostic tool for displaying the flow rate in real-time, providing exact metrics for system commissioning and performance tuning.
• Manometer: A clear, mechanical gauge for displaying the system pressure instantly, featuring a high-contrast dial for easy reading even in dimly lit mechanical rooms.
• Safety valve: A critical pressure-relief mechanism designed to prevent inadmissible overpressure, actively protecting the entire piping network from potential thermal expansion damage.
• Flushing and filling unit: A dedicated dual-port module for flushing, filling and emptying the solar thermal system, which dramatically reduces the time required for routine fluid replacement and seasonal maintenance.

Pump Station Packing List & Secure Packaging

To guarantee that every component arrives in pristine condition, we utilize industrial-grade security packaging. Depending on the scale of the procurement, the units are meticulously packed in reinforced cardboard cartons, rigid plywood boxes, or secured on heavy-duty pallets. This thorough packaging process shields the EPP casing and sensitive electronic sensors from impact, vibration, and moisture during long-distance transit. We maintain a highly responsive inventory system, ensuring that large-scale project demands are met with prompt, on-time deliveries.

Dimension Details & Spatial Planning

Efficient spatial planning is essential for modern mechanical rooms, and the SR21L is engineered with a highly compact footprint. The precise dimension details provided above allow project managers and installation teams to accurately allocate wall space prior to arriving on site. The streamlined profile ensures that the workstation can be mounted securely without interfering with adjacent plumbing or electrical infrastructure. Furthermore, the standardized port spacing aligns perfectly with conventional piping layouts, significantly reducing the need for complex, custom pipe bending or additional adapters during the final connection phase.

Installation Diagram & System Compatibility

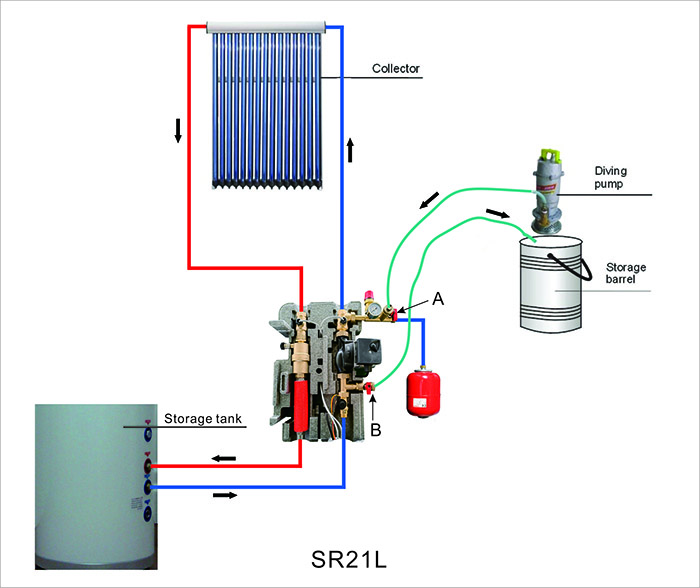

The comprehensive installation diagram illustrates the straightforward integration path for the SR21L into a complete thermal network. This unit exhibits exceptional system compatibility, functioning effectively with a wide variety of collector types, including both Flat Plate and Heat Pipe split pressure solar water heating systems. By consolidating the fluid circulation mechanics and the electronic management (driven by the integrated solar controller SR258) into a single, wall-mounted node, the overall system architecture is vastly simplified. Contractors benefit from an intuitive setup process that minimizes on-site labor hours and reduces the margin for installation errors.

Global Certifications & Market Endorsements

As a vital safety and control hub within renewable energy infrastructure, the SR21L solar pump station holds authoritative international certifications, including full CE compliance. This mark guarantees that the product adheres strictly to European safety, health, and environmental protection directives. Beyond laboratory testing, this workstation is backed by extensive real-world market endorsements. It has been successfully deployed in diverse and challenging climates, earning verified positive feedback and establishing a proven track record of successful application cases across Europe, the Middle East, and South America. Whether managing the thermal load of a sun-drenched coastal villa or a high-capacity commercial facility, the SR21L consistently delivers reliable, long-term thermal management.
