58/1800-30
Solaraven
8419120000
The Solar Air Heating System also called as air heating solar system or solar dryer is highly efficient, designed to maximize the conversion of sunlight into usable heat. This system uses air heating solar collector to capture solar heat, which is then used to heat air for space heating or drying purposes. The solar panels are equipped with both ends open solar vacuum tubes collect the solar radiation and converts it into thermal energy, which is transferred to the air circulating through the system. This process provides a sustainable heating solution that reduces reliance on conventional energy sources such as electricity or gas.
air heating solar collector is the main component of air heating solar system.

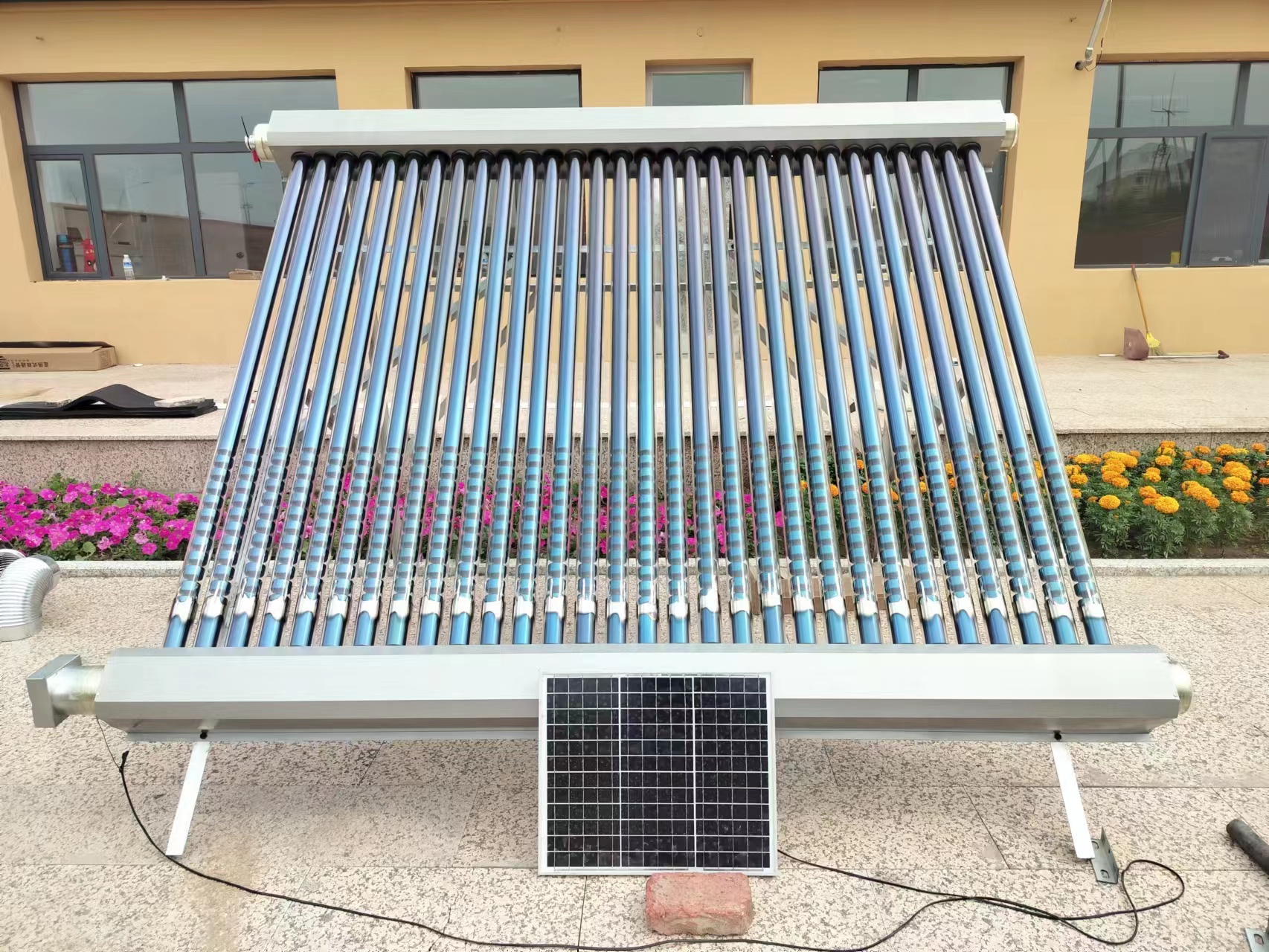

1 unit of air heating solar collector including 30pcs of both ends open solar vacuum tubes, 2 manifolds for air flow circulation. The solar air heating temperature could easily reach 90℃ at sunny days. If use a array of solar heating collectors could acheive max air heating temperature140℃.
Solar air heating panel model： 58-180/30
Absorber area：5㎡
Output power：2KW（each solar air heating panel work 8hours in the sunny days, will generate 16KWH heat）
Working mode：solar air heating
Air heating temperature: reach 90℃-140℃
the solar vacuum tube absorbs solar energy from sunlight and transfer it into heat. The vacuum tube inner temperature could reach max 250℃. The air heating solar collector's vacuum tube is both ends open, allows cold air flows through all the tubes and come out as hot air.
Advantage of solar air heating system
air flow inside the vacuum tubes，it has advantages as below：
1、no leakage problem
2、even one tube is broken, the system is still working.
3、no freeze problem
4、no overheating problem
5、more efficiency, with big air flow rate.
solar heaing project showcase

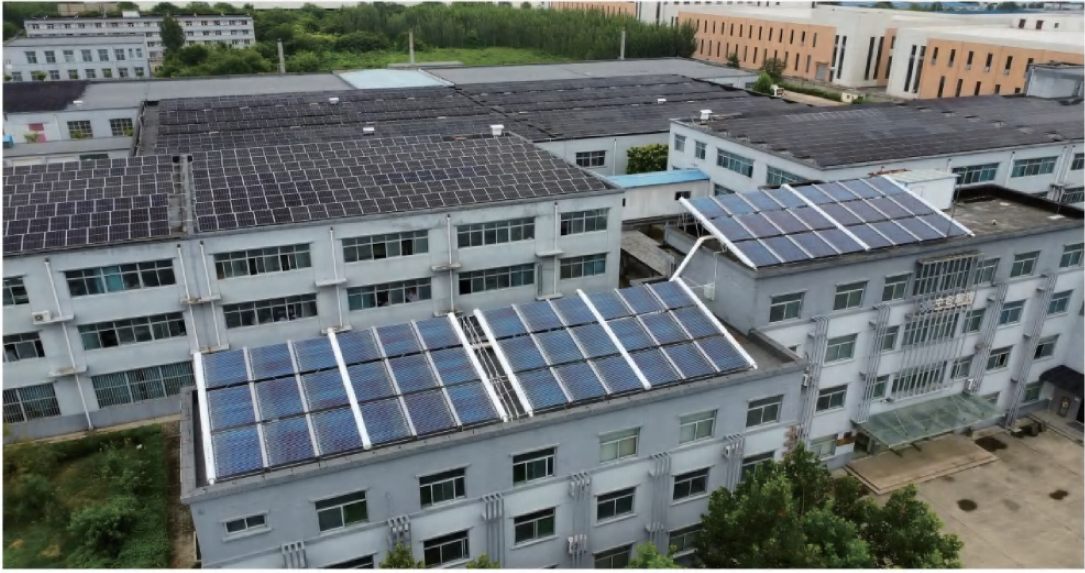

Solar drying system for factory
Drying application: clothing, fabric
Project size: solar air drying system with 1800pcs solar air heating tubes

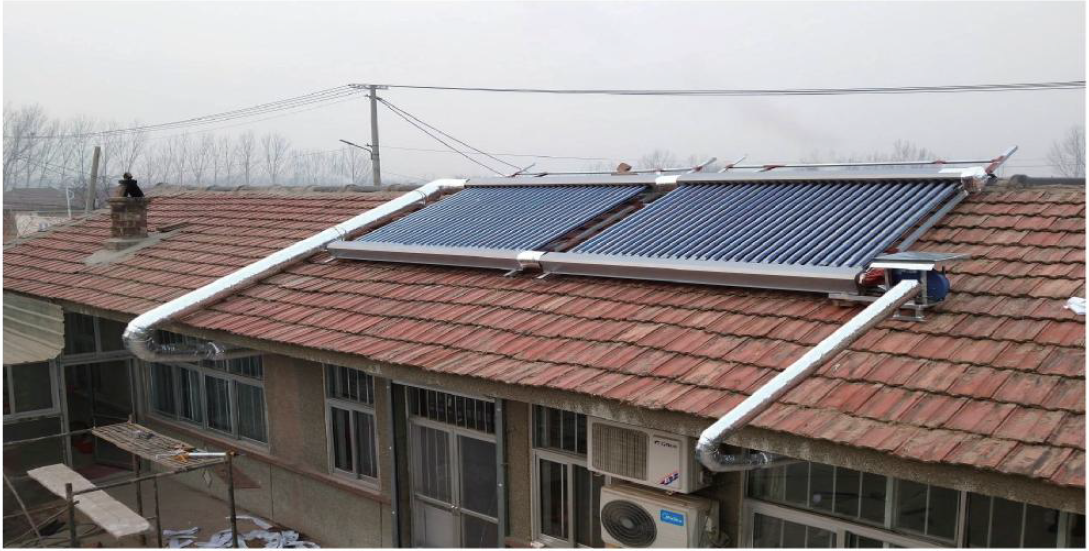

Thermal energy conservation
solar heating system for a house space of 40 square meters, adopts 2 unit of air heating solar panels, each panel with 30 pcs both ends open solar tubes, heating temperature up to 18℃，outdoor temperature -10 ℃.
At daytime, solar system heating the house; while at night, a wall-hanging stove will heat the house.
