| Quantity: | |
|---|---|
AIO200L
Solaraven
84186190

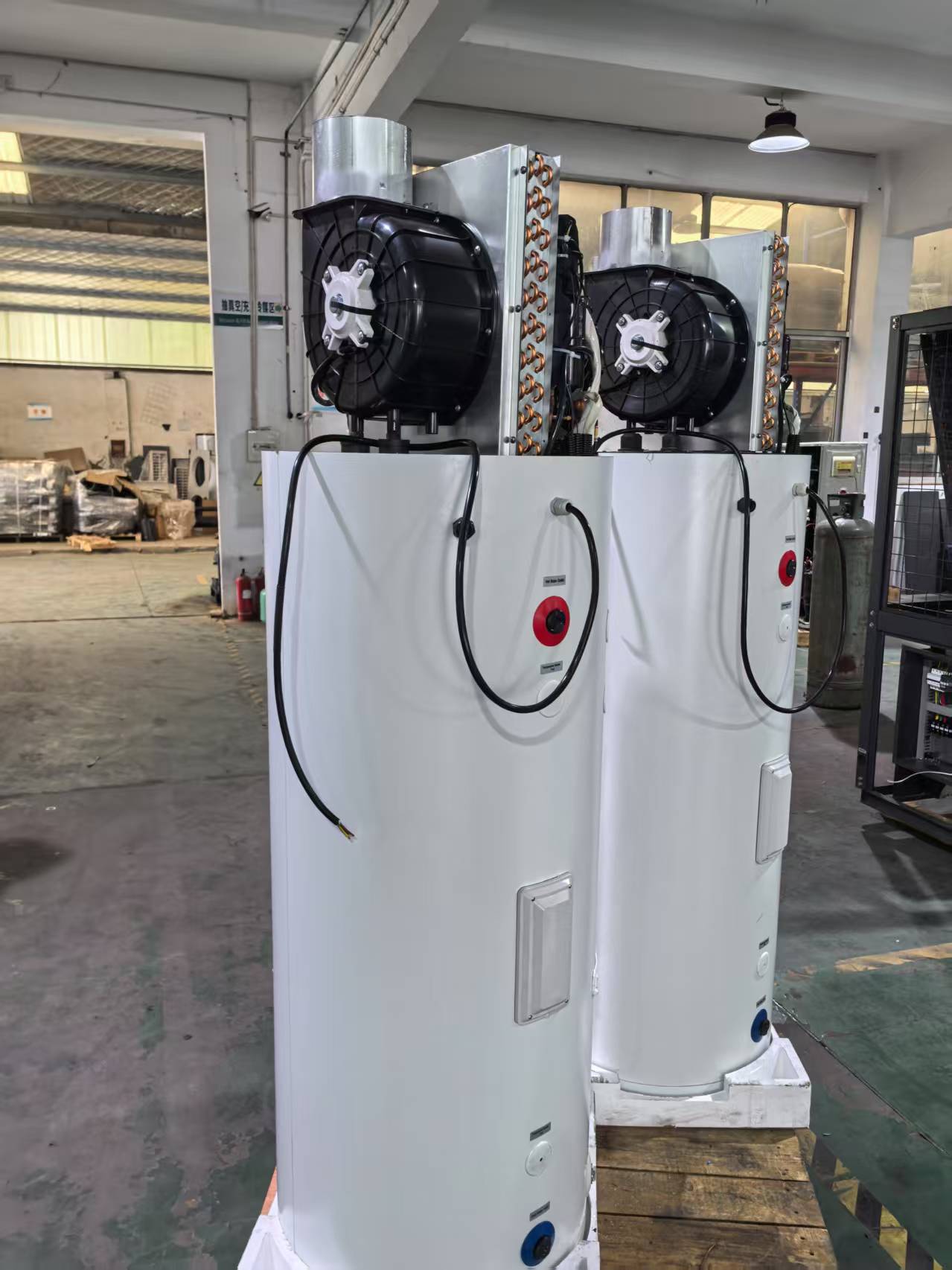

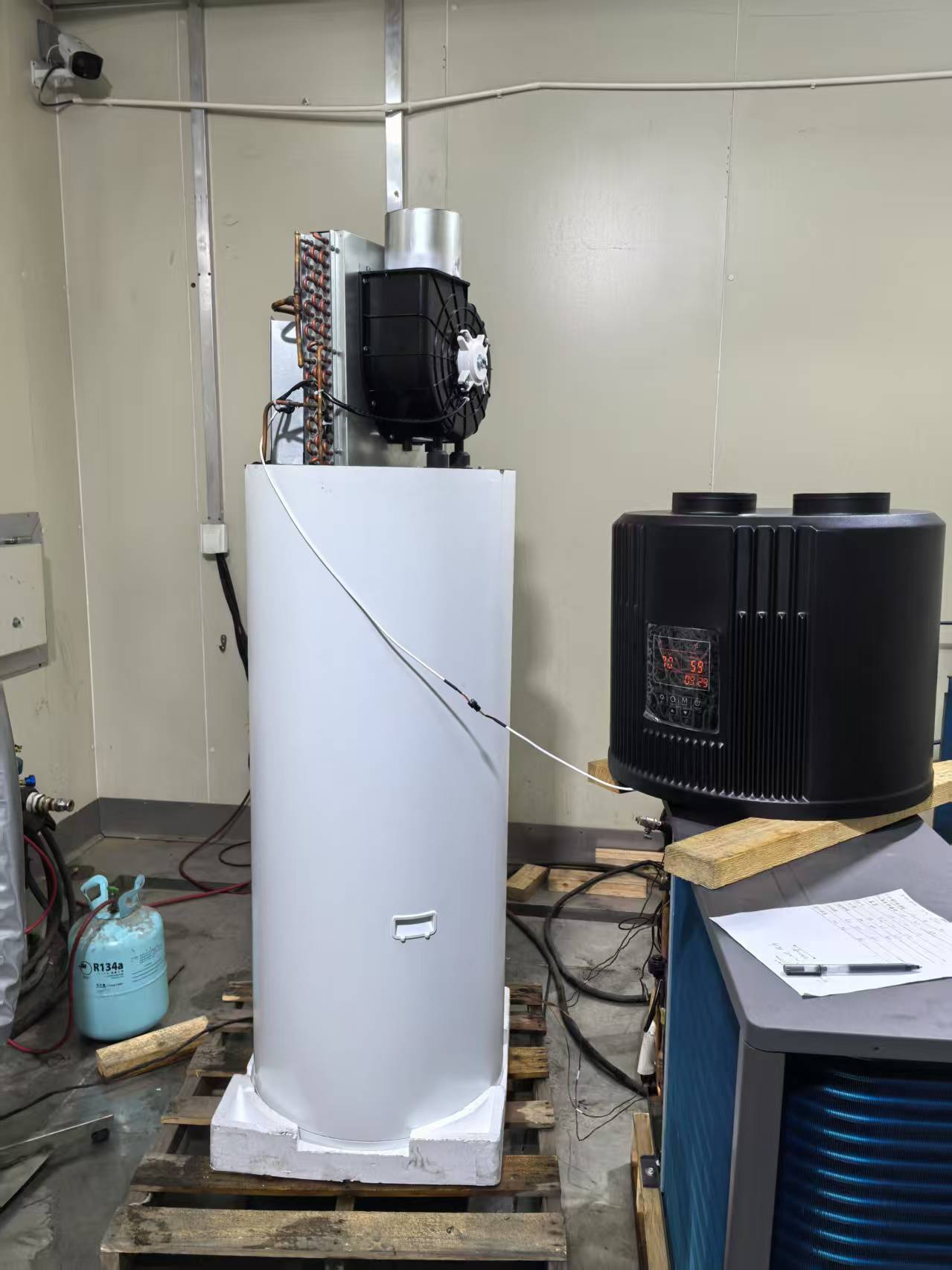

all in one heat pump is an invovative air source heat pump water heater designed for high rise building apartments, normal household, hotel rooms. It combines heat pump with hot water storage tank together. Save energy and easily installation.
Floor standing type All in one air source heat pump water heater system diagram
All in one heat pump Advantages:
Enviroment-friendly and high efficiency
R134a or R290 refrigerant, free indoor installation
Mirco-channel heat exchanger wrapped around the inner tank

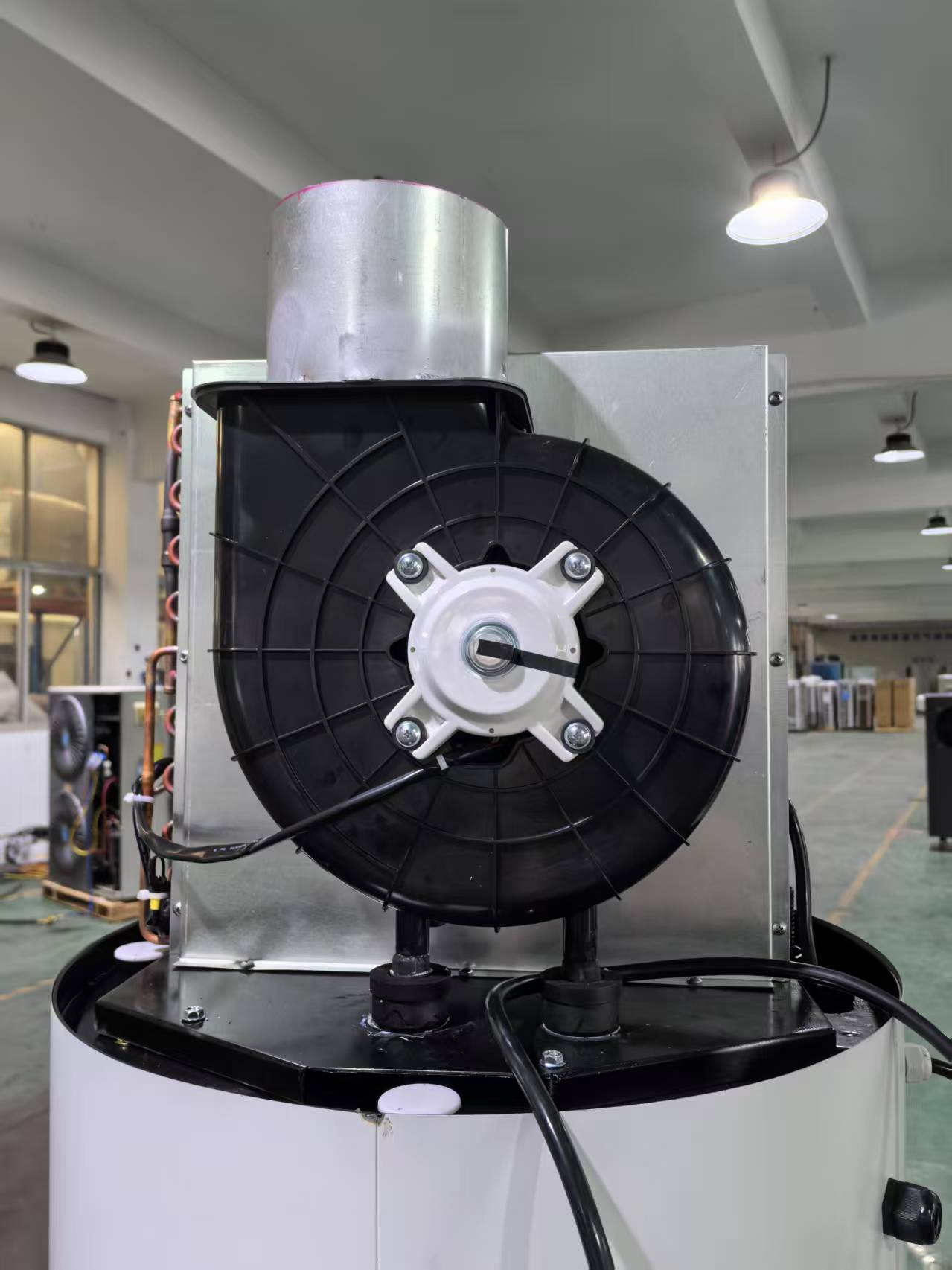

BLDC fan motor, higher efficiency and lower noise
Higher water temperature output up to 75℃
Reliable inner tank
Water tank size: 60L~500L
Enamel porcelain steel or inox（SUS316L stainless steel）are available
Optional electric and anode
Flexible installations
Top-discharge design suitable for various installations
PV solar control and solar coil are optional
Wifi and Modbus connection are optional
All in one heat pump specification
| Model | AIO100L | AIO150L | AIO200L | AIO300L |
| Voltage/frequency | 220V/1P/50HZ | 220V/1P/50HZ | 220V/1P/50HZ | 220V/1P/50HZ |
| Heating capacity | 1.8KW | 1.8KW | 2.4KW | 2.4KW |
| Power input | 0.47KW | 0.47KW | 0.47KW | 0.85KW |
| Power current | 1.85A | 1.85A | 1.85A | 2.3A |
| Storage volume | 100L | 150L | 200L | 300L |
| Hot water temperature | 55℃ | 55℃ | 55℃ | 55℃ |
| Electric heating | 2KW | 2KW | 2KW | 2KW |
| Ambient temperature | -7~45℃ | -7~45℃ | -7~45℃ | -7~45℃ |
| Waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Inner tank material | enamel steel 2.0mm | enamel steel 2.0mm | enamel steel 2.0mm | enamel steel 2.0mm |
| Heat exchanger coil | Micro channel | Micro channel | Micro channel | Micro channel |
| Compressor type | Rotary | Rotary | Rotary | Rotary |
| Refrigerant | R134a/ R290 | R134a /R290 | R134a/ R290 | R134a/ R290 |
| Noise level | less than 48dB | less than 48dB | less than 48dB | less than 48dB |
| Packing dimension | 710*680*1290mm | 710*680*1560mm | 710*680*1842mm | 720*720*2135mm |
| Net weight | 55KG | 85KG | 112KG | 142KG |
