AIO100L
Solaraven
84186190
Wall mounted heat pump water heater designed for high rise building apartments, normal household, hotel rooms. It combines heat pump with hot water storage tank together. Save energy and horizontal/ vertical installation.

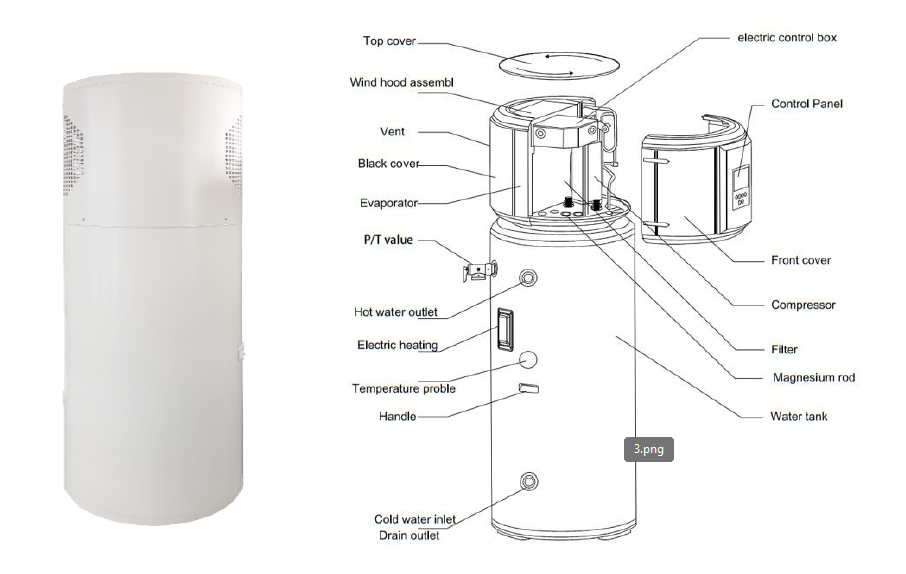

Wall mount type All in one heat pump water heater diagram
All in one heat pump water heater Advantages:
small volume and high efficiency
Horizontal or vertical optional
R134a or R290 refrigerant
Mirco-channel heat exchanger wrapped around the inner tank
BLDC fan motor, lower noise than 38dB
Higher water temperature output up to 75℃
Reliable inner tank
Water tank size: 60L, 80L, 100L
Enamel porcelain steel
Optional electric heating and anode
Flexible installations
Top-discharge design suitable for various installations
PV solar control and solar coil are optional
Wifi and Modbus connection are optional
All in one heat pump water heater specification
| Model | AIO100L | AIO150L | AIO200L | AIO300L |
| Voltage/frequency | 220V/1P/50HZ | 220V/1P/50HZ | 220V/1P/50HZ | 220V/1P/50HZ |
| Heating capacity | 1.8KW | 1.8KW | 2.4KW | 2.4KW |
| Power input | 0.47KW | 0.47KW | 0.47KW | 0.85KW |
| Power current | 1.85A | 1.85A | 1.85A | 2.3A |
| Storage volume | 100L | 150L | 200L | 300L |
| Hot water temperature | 55℃ | 55℃ | 55℃ | 55℃ |
| Electric heating | 2KW | 2KW | 2KW | 2KW |
| Ambient temperature | -7~45℃ | -7~45℃ | -7~45℃ | -7~45℃ |
| Waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Inner tank material | enamel steel 2.0mm | enamel steel 2.0mm | enamel steel 2.0mm | enamel steel 2.0mm |
| Heat exchanger coil | Micro channel | Micro channel | Micro channel | Micro channel |
| Compressor type | Rotary | Rotary | Rotary | Rotary |
| Refrigerant | R134a/ R290 | R134a /R290 | R134a/ R290 | R134a/ R290 |
| Noise level | less than 48dB | less than 48dB | less than 48dB | less than 48dB |
| Packing dimension | 710*680*1290mm | 710*680*1560mm | 710*680*1842mm | 720*720*2135mm |
| Net weight | 55KG | 85KG | 112KG | 142KG |
Why choose all in one heat pump water heater ?
energy saving and high efficiency, easy installation and adaptability to all scenarios, which is especially suitable for long-term use in families.
The integrated air source heat pump water heater heats water by "transporting" free heat energy in the air instead of directly using electricity for heating. The energy efficiency ratio (COP) can usually reach more than 4.0, which means that consuming 1 kilowatt hour of electricity can generate heat equivalent to 4 kilowatt hours of electricity. The energy saving effect is 4 times that of electric water heaters, significantly reducing electricity bills.
Integrated structure, simple installation
The one-piece design highly integrates the compressor, evaporator, condenser and water tank into a single unit. There is no need to connect refrigerant pipes on site. It only needs to be connected to the inlet and outlet water pipes for use. It avoids the complex copper pipe welding and vacuuming operations of the split machine, greatly simplifying the installation process and reducing the risk of leakage. Especially friendly for families with limited space such as balconies and kitchens.
Quiet operation and lower noise
Since the main moving parts (such as the compressor) are enclosed inside the host and adopts full DC frequency conversion and AI intelligent defrosting technology, the noise of the all-in-one machine can be as low as 40.5 dB(A), which is equivalent to the ambient sound of a library and will not affect daily life at home. It is especially suitable for users who have high requirements for silence.
