solar thermal system pump station

solar thermal system pump station

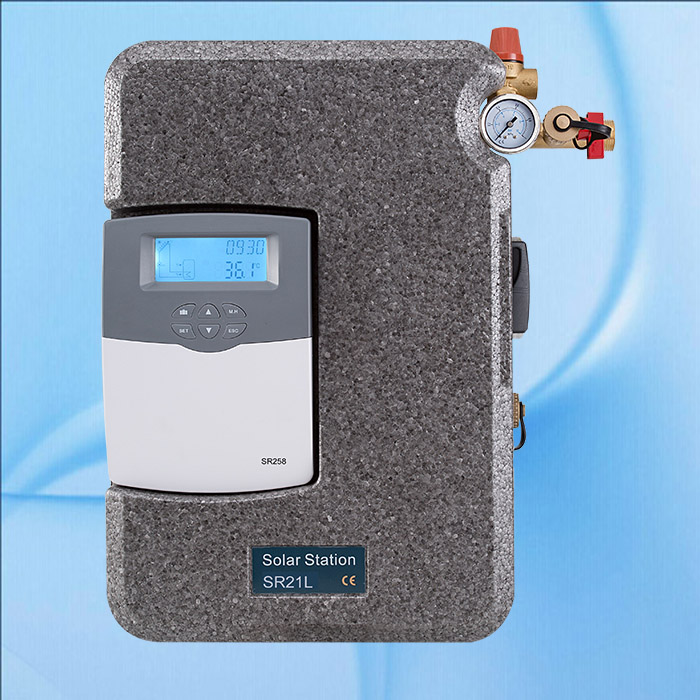

SR21L solar pump station is an intelligent solar work station designed for split pressure solar water heating systems.  SR21L for double pipelines with conventional pump

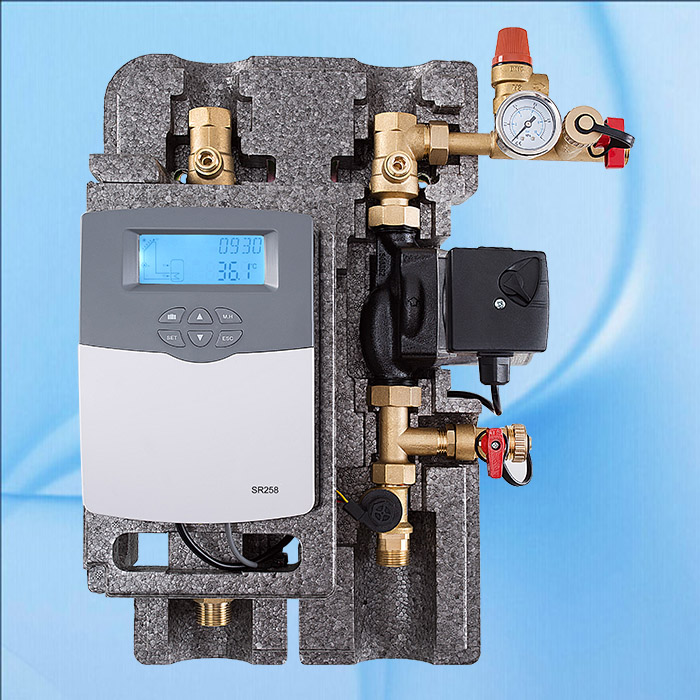

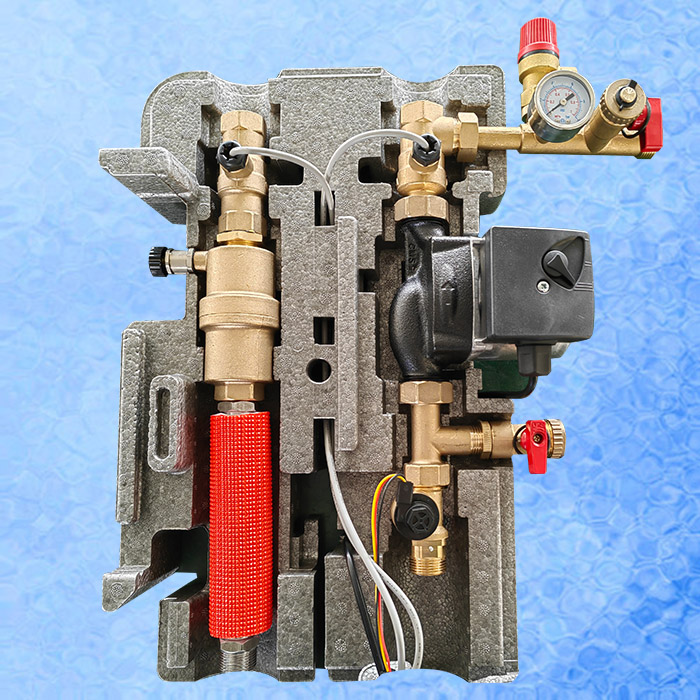

This solar pump station is a preinstalled and leak-tested group of fitting for transferring heat from the collector to the storage tank. It contains important fittings and safety devices for the operation of the solar thermal system:

Ball valves in flow and return in combination with check valves to prevent gravity circulation.

Air stopper for manual bleeding of the solar thermal system

Electronic flow rate check for displaying the flow rate

Manometer for displaying the system pressure

Safety valve to prevent inadmissible overpressure

Flushing and filling unit for flushing, filling and emptying the solar thermal system

pump station packing list:

1* solar pump station

1* integrated solar controller SR258

1* wall mounting bracket

1* accessory bag

1* manual

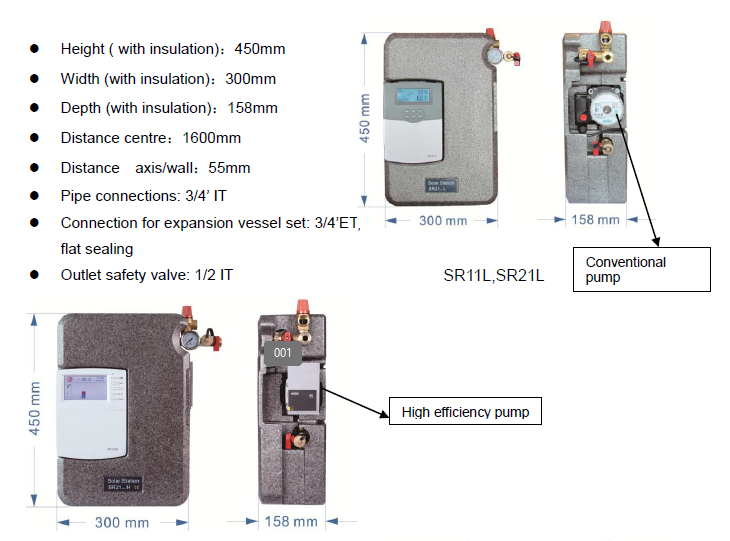

Dimension details

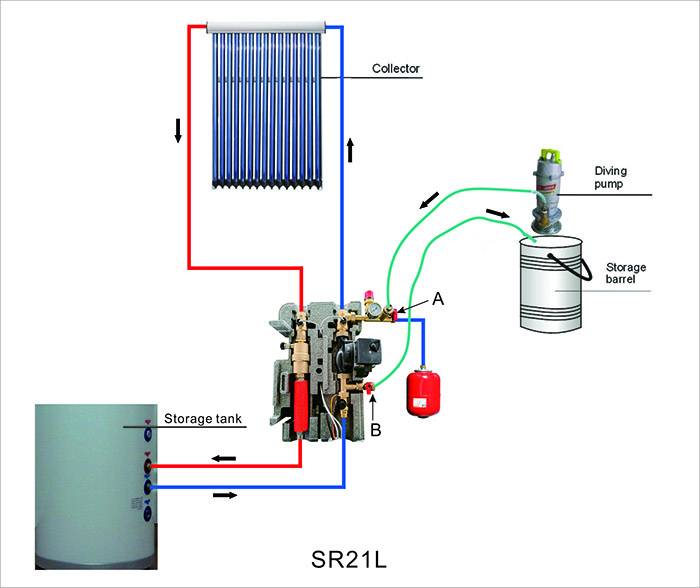

Installation diagram
