radiant solar space heating system

Radiant solar space heating is a solar thermal system that collects heat energy through solar collectors and then dissipates it evenly in the form of infrared rays through radiant panels (such as underfloor heating or wall heating). It is highly efficient and energy-saving, and provides a high level of comfort, combined with energy storage or auxiliary heat sources in case of cloudy or rainy days.

Quantity:
Availability:





Inquire Add to Basket

Model:
RNE-SPHS-500
Brand:
SOLARAVEN
Code:
841912

Product Description

radiant solar space heating system

Radiant solar space heating is a solar thermal system that collects heat energy through solar collectors and then dissipates it evenly in the form of infrared rays through radiant panels (such as underfloor heating or radiator heating). It is highly efficient and energy-saving, and provides a high level of comfort, combined with energy storage or auxiliary heat sources in case of cloudy or rainy days.

It is suitable for Europe countries ,especially anti freeze for some extreamly cold places . The solar space heating system hot water capacity is from 500liter to 2000liter base on diffrent household heating areas.

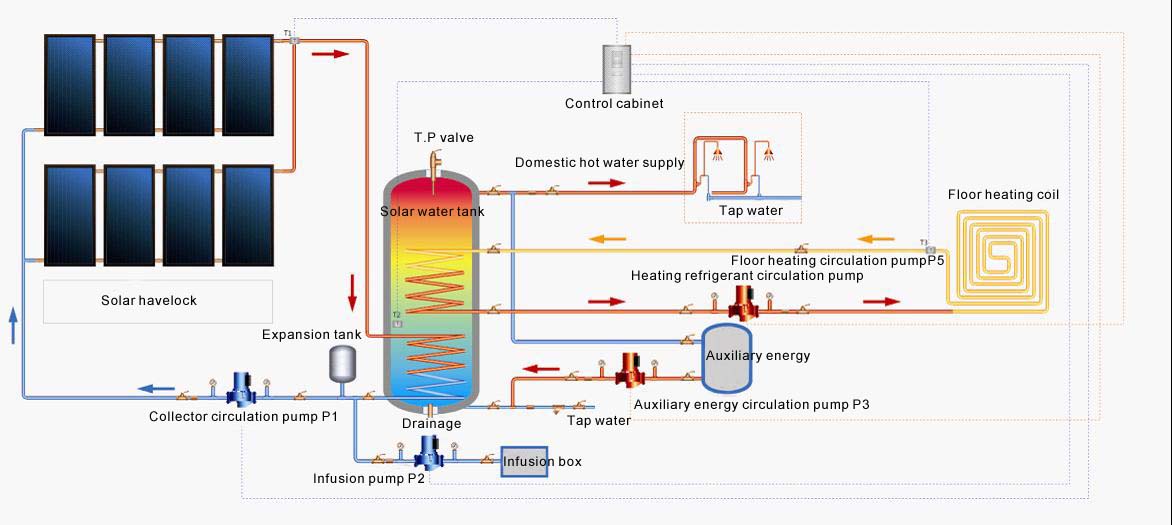

Working diagram

solar heating system

Specification
Model	Solar vacuum tube					Water tank	Pump station		Expansion vessel
	Diameter	Length		No.		capacity
RNE-SPHS-150	58mm		1800mm		15tube	150liter	SR881		8L
RNE-SPHS-200	58mm		1800mm		20tube	200liter	SR881		12L
RNE-SPHS-300	58mm		1800mm		30tube	300liter	SR881		18L
RNE-SPHS-400	58mm		1800mm		40tube	400liter	SR881	24L
RNE-SPHS-500	58mm		1800mm		50tube	500liter	SR881	24L
RNE-SPHS-1000	58mm		1800mm		100tube	1000liter	SR881	50L
