| size: | |
|---|---|
| absorber coating: | |
| absorbtion rate: | |
| head pipe: | |
| riser tube: | |
| absorber sheet: | |
| glass cover: | |
| Quantity: | |
80D
SOLARAVEN
841990
blue titanium flat panel solar collector generate hot water
The core mechanism of blue titanium flat panel solar collectors revolves around harnessing sunlight to heat water efficiently. Here’s a step-by-step breakdown of the process:
Sunlight Absorption: The collector’s blue titanium coating is specially designed to absorb solar radiation effectively. This coating enhances light absorption while minimizing heat loss, ensuring maximum energy conversion.
Heat Transfer: Absorbed sunlight heats the fluid (usually water or a antifreeze solution) circulating through the collector’s tubes. The flat panel design allows for even heat distribution, optimizing thermal efficiency.
Insulation and Retention: High-quality insulation materials surrounding the collector prevent heat dissipation, ensuring that the generated warmth is retained for extended periods. This feature is crucial for maintaining hot water availability even during cloudy days.
Hot Water Delivery: Heated fluid is transferred to a storage tank, where it can be used for domestic purposes like showers, laundry, or space heating. The system can be integrated with existing plumbing, making it a versatile solution for both residential and commercial settings.
flat plate solar collector is very suitable for east africa and south africa, south america and south Europe countries.
For example, south African flat-plate solar collector market exhibits a diversified competitive landscape, with major players including:
International brands: such as Apricus Solar (an Australian brand specializing in solar water heating and circulating heating products) and Rheem (an American brand providing high-quality hot water solutions).
Other brands: such as SOLARAVEN , suitable for factories and construction sites, large-scale hot water applications such as hotels, schools, and hospitals.
Flat plate solar collector structure:
Flat plate solar collector specification
Flat Plate Solar Collector Specification | |
Model | 80D |
Coating | High selective blue titanium or black chrome |
Welding | Laser welding |
Material of Absorber plate | Aluminum sheet 0.4mm |
Size & Quantity of head tube | coper tude,φ22*0.6mm 2PCS |
Size & Quantity of riser tube | coper tude,φ10*0.6mm 7PCS;OR φ8*0.6mm 8PCS |
Absorption rate | 95% |
Reflection rate | 7% |
Collector size | 2000×1000×80mm |
Profile material & color | Aluminum alloy,black color |
Cross area | 2.0㎡ |
Absorber area | 1.85㎡ |
glass cover material | 3.2mm low iron fabric surface tempered glass |
glass cover transmission | 90% |
Back plate material | 0.4mm stainless steel |
Insulation | 40mm glass wool |
Rated working pressure | less than 0.6MPa |

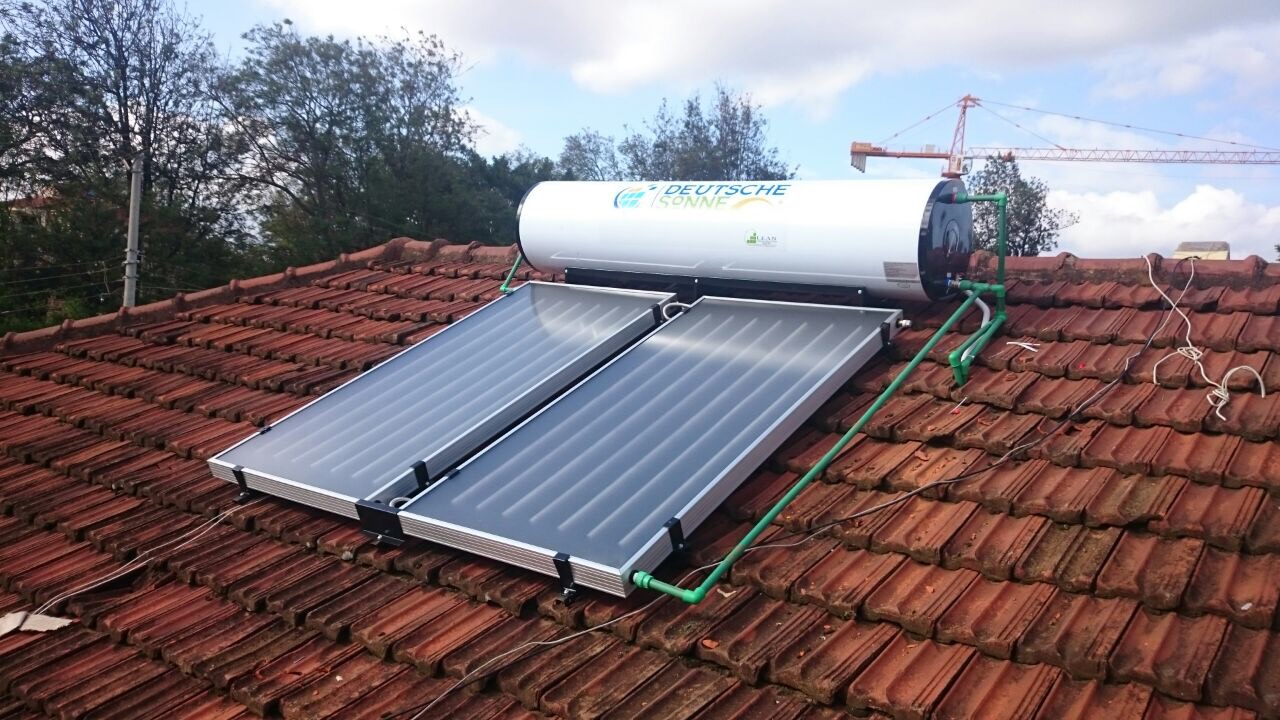

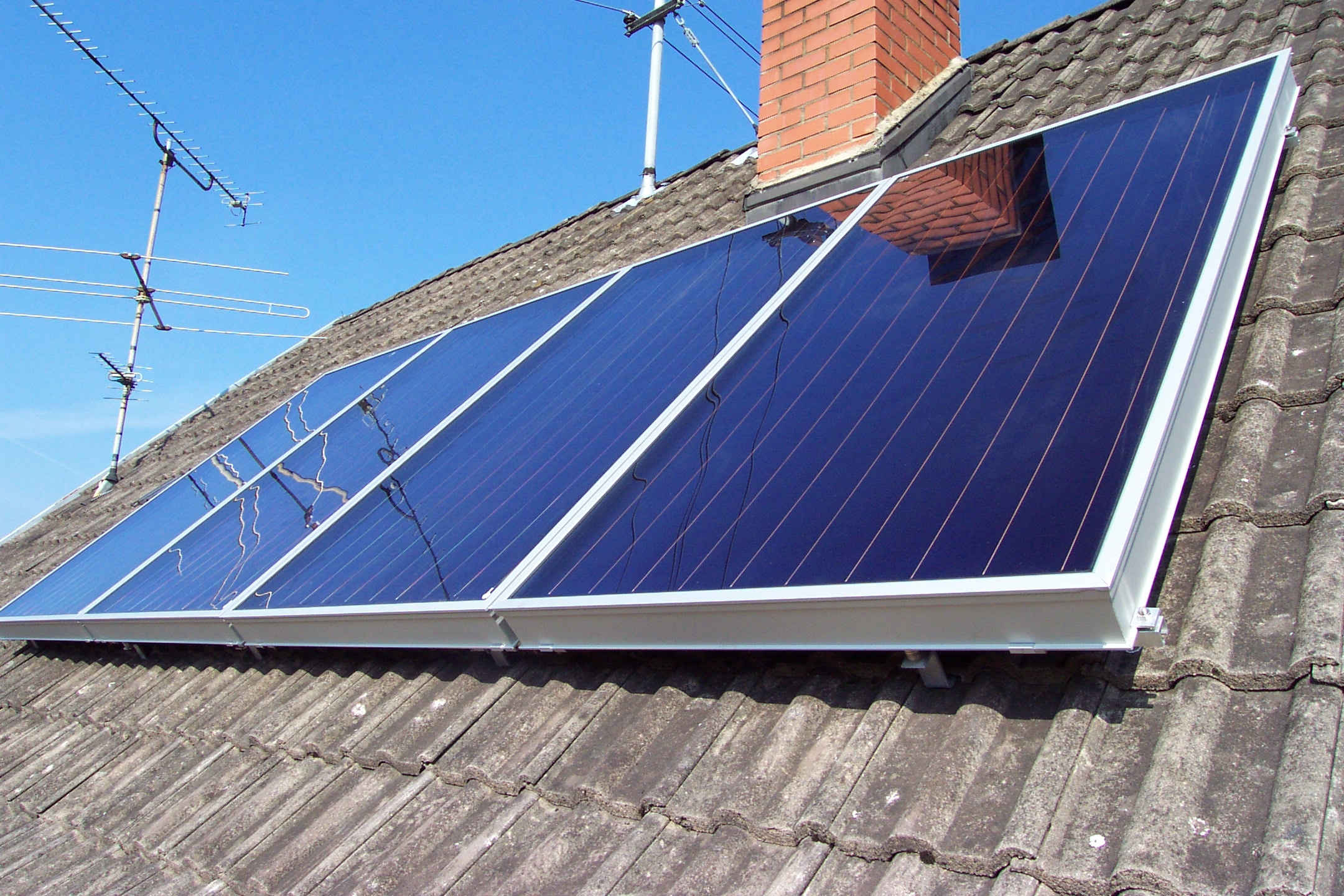

Flat plate solar collector pictures:
