58/1800
Solaraven
8419901000

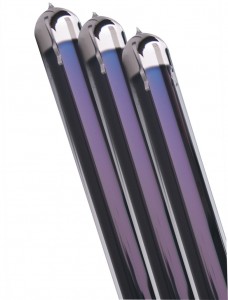

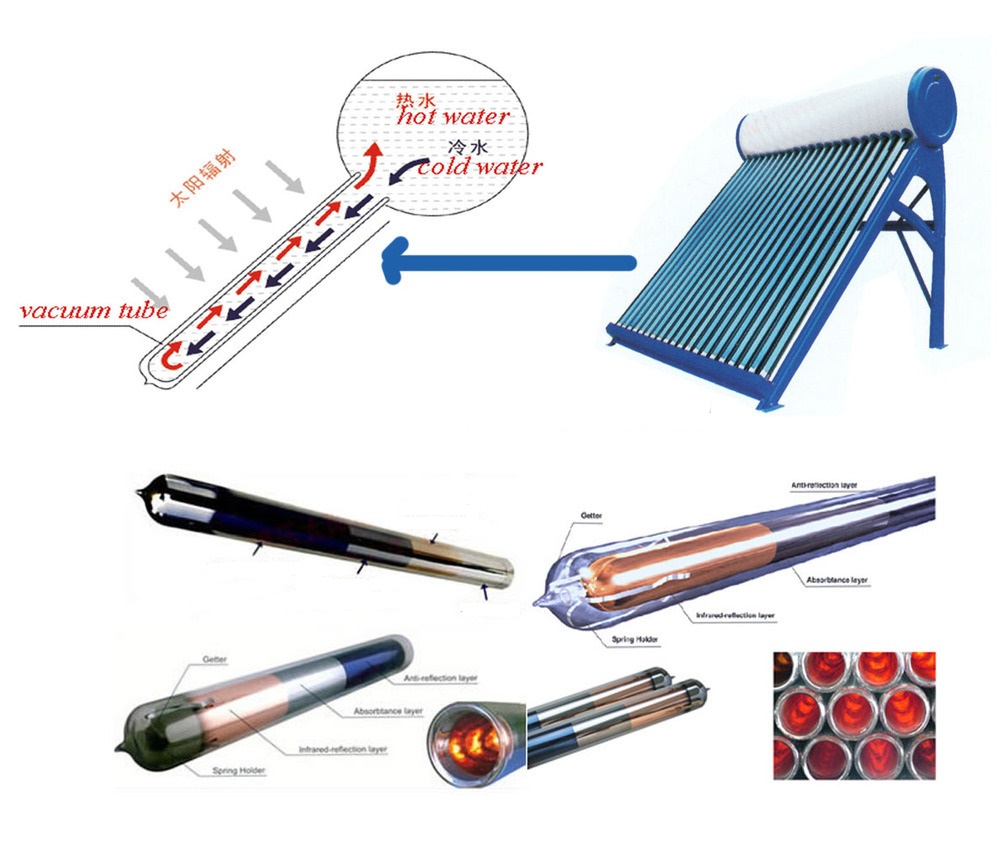

glass solar vacuum tube also called as solar evacuated tube, solar collector tube, solar glass tube , which is the core components of solar water heaters, which provide hot water for families and industries by efficiently absorbing solar radiation energy and converting it into heat energy.
solar vacuum tube model and dimension:
58/1800, 58mm diameter, 1800mm length, net weight 2.0kgs, 10pcs/carton
47/1500, 47mm diameter, 1500mm length, net weight 1.5kgs, 15pcs/carton
58/2100, 58mm diameter, 2100mm length, net weight 2.4kgs, 10pcs/carton

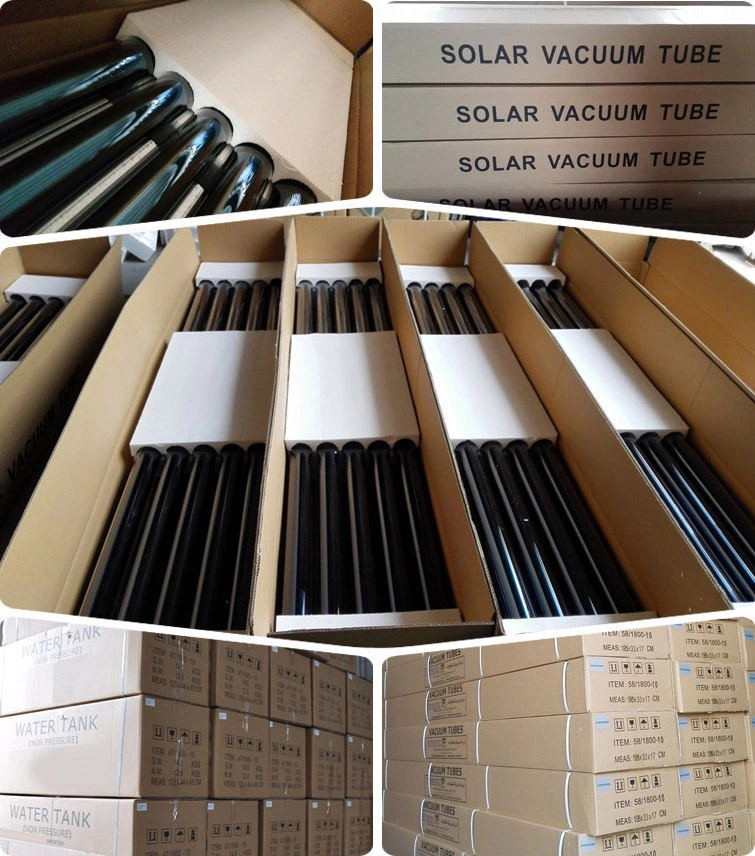

Package details:
Technical data :
| Model | 58/1800 | 58/2100 | 47/1500 |
| Tube Diameter | 58mm | 58mm | 47mm |
| Tube Length | 1800mm | 2100mm | 1500mm |
| Tube thickness | 1.6mm | 1.6mm | 1.6mm |
| Net weight | 2.0kgs | 2.4kgs | 1.5kgs |

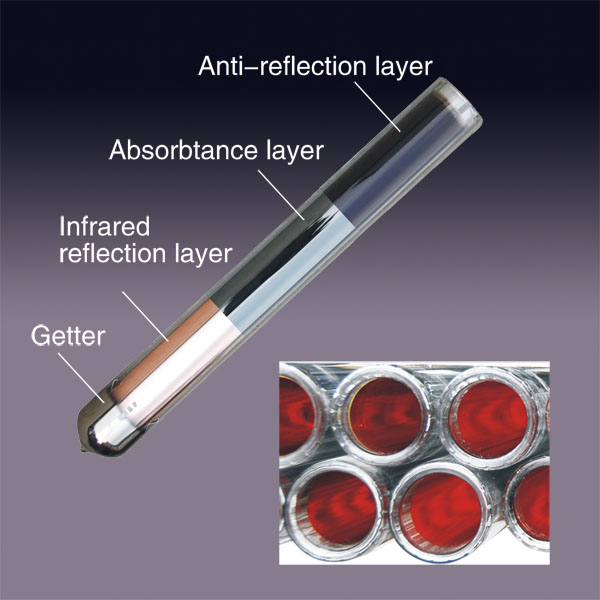

| Coating | 3 layer | 3 layer | 3 layer |
| Absorption rate | 93% | 93% | 93% |
| Emission rate | 4% | 4% | 4% |
| Color | Blue | Blue | Blue |
| Glass material | borosilicate 3.3 | borosilicate 3.3 | borosilicate 3.3 |
We are manufacturer of all glass solar vacuum tubes in China , we produce solar evacuated tubes with all sizes. We accept small orders. Welcome for inquiry.
