A solar hot water system uses solar thermal energy to heat water for homes, hotels, apartments, schools, factories, and other buildings with daily hot water demand. Unlike photovoltaic panels that generate electricity, a solar hot water system captures heat from sunlight and transfers it to water through collectors, a storage tank, pumps, controls, and sometimes a heat exchanger. A well-designed solar hot water system can reduce dependence on electricity, gas, or oil, but its performance depends on climate, water quality, installation design, system type, and regular maintenance.
● A solar hot water system uses sunlight to produce usable hot water.
● Main parts include collectors, tank, pump, controller, heat exchanger, and backup heater.
● Direct and indirect designs suit different climates and water conditions.
● An indirect solar hot water system is often better for cold or hard-water regions.
● Active systems use pumps, while passive systems rely on natural circulation.
● Roof angle, shading, storage size, and collector type affect performance.
● A solar hot water system usually needs backup heating during low-sun periods.
● Regular inspection keeps a solar hot water system efficient and durable.
A solar hot water system is a water heating solution that converts solar radiation into thermal energy instead of electricity. The collected heat is transferred to domestic or process water and stored until hot water is needed. In residential and commercial projects, a solar hot water system is commonly used for bathing, washing, cleaning, laundry, kitchens, and centralized hot water supply.
A residential solar hot water system usually serves bathrooms, kitchens, and daily household washing needs. A commercial solar hot water system may support hotels, dormitories, hospitals, schools, factories, and apartment buildings where hot water demand is larger and more regular. An industrial solar hot water system may also preheat process water to reduce fuel consumption in boilers or auxiliary heaters.
The collectors are the heat-capturing surface of a solar hot water system, usually installed on a roof or support frame. Sunlight passes through collector glass or tubes and reaches an absorber surface designed to retain heat. That heat is then transferred into water or heat transfer fluid circulating through the solar hot water system.
The storage tank allows a solar hot water system to provide hot water even when sunlight is not available at that exact moment. Tank size must match daily usage, peak demand, and the number of collectors installed. If the tank is too small, the solar hot water system may waste heat; if it is too large, stored water may not reach the desired temperature efficiently.
In an active solar hot water system, the pump moves fluid between the collectors and the storage tank. The controller compares collector temperature with tank temperature and starts circulation only when useful heat can be collected. This control logic protects the solar hot water system from heat loss, overheating, and unnecessary pump operation.
Component | Function in a Solar Hot Water System | Key Design Point |
Solar collectors | Capture solar heat | Collector type and surface area |
Storage tank | Stores hot water | Capacity and insulation quality |
Heat exchanger | Transfers heat indirectly | Efficiency and corrosion resistance |
Pump | Moves fluid through the loop | Flow rate and durability |
Controller | Manages circulation | Temperature accuracy |
Backup heater | Supplies heat when solar input is low | Integration with gas, electric, or boiler systems |
A direct solar hot water system circulates potable water directly through the collectors. This design is simpler and can perform well in warm climates with good water quality. However, a direct solar hot water system can face freezing risk in cold regions and scaling problems in areas with hard water.

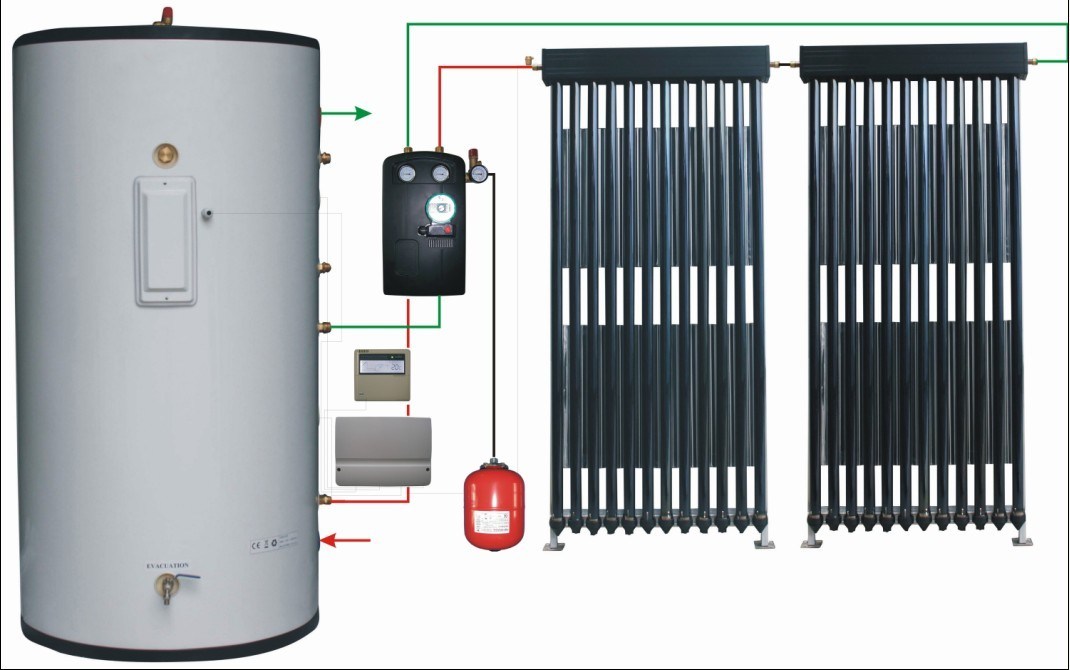

An indirect solar hot water system uses a closed loop with heat transfer fluid, often with antifreeze protection. Heat from the collector loop passes through a heat exchanger and warms the potable water in the tank. This type of solar hot water system is often preferred for cold climates, hard-water areas, and commercial installations that require stronger protection.
An active solar hot water system uses pumps, sensors, and a controller to circulate water or heat transfer fluid. It offers better control over heat transfer and is suitable for buildings with stable daily hot water demand. Because circulation is controlled mechanically, an active solar hot water system can be designed for more complex roof layouts and larger storage systems.
A passive solar hot water system relies on gravity, density difference, or natural circulation rather than a powered pump. It has a simpler structure and may be useful in warm climates with modest hot water demand. However, a passive solar hot water system is less flexible in installation and may require the tank to be positioned above the collectors.
System Type | How It Works | Suitable Conditions | Main Limitation |
Direct system | Potable water flows through collectors | Warm climates, clean water | Freeze and scaling risk |
Indirect system | Closed loop transfers heat through exchanger | Cold climates, hard-water regions | Higher design complexity |
Active system | Pump and controller manage flow | Residential and commercial projects | Needs electrical components |
Passive system | Natural circulation moves water | Simple warm-climate installations | Limited flexibility |
Flat plate collectors are common in a solar hot water system because they are durable, simple, and visually compact. They use an insulated box, glass cover, absorber plate, and fluid channels to collect heat. A flat plate solar hot water system can be effective in moderate climates, although heat loss may increase during colder weather.

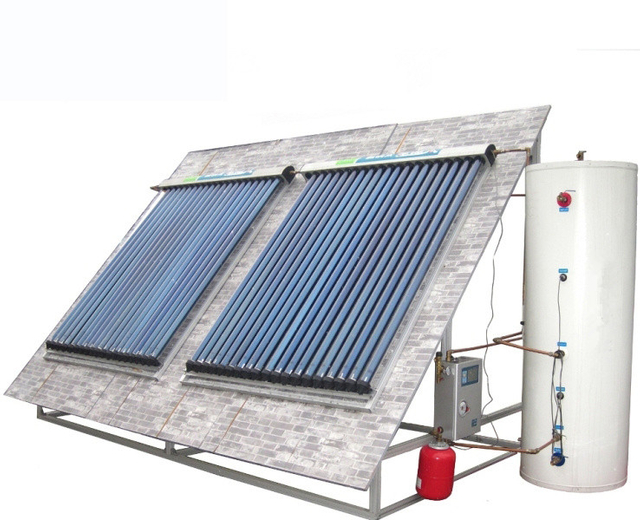

Evacuated tube collectors use vacuum insulation to reduce heat loss in a solar hot water system. They often perform better in colder climates or areas with variable sunlight because each tube is designed to retain heat efficiently. An evacuated tube solar hot water system may require careful handling because tubes can be more fragile than flat plate panels.
A pitched roof solar hot water system should be placed where collectors receive strong sunlight for the longest practical period each day. Orientation, tilt angle, roof strength, pipe distance, and shading from trees or nearby structures all affect performance. Poor roof placement can reduce heat collection even when the solar hot water system uses high-quality collectors.
A flat roof solar hot water system offers flexibility because support frames can adjust collector angle and direction. The design must account for wind load, waterproofing, roof penetration, drainage, and maintenance access. For commercial buildings, a flat roof solar hot water system can also be arranged in collector arrays to match larger hot water demand.
A solar hot water system can work in winter as long as sunlight reaches the collectors. Output may decrease because days are shorter, solar radiation is weaker, and ambient temperatures are lower. In cold climates, an indirect solar hot water system with antifreeze, insulation, and proper controls is usually more reliable than a direct design.
Most installations still need backup heating because a solar hot water system depends on available sunlight. Cloudy days, nighttime demand, heavy usage, and winter conditions can reduce solar heat contribution. A well-integrated backup heater supports the solar hot water system without replacing its energy-saving role.
A solar hot water system is primarily designed for domestic hot water, not full building heating. It can assist space heating when paired with low-temperature systems such as radiant floors and when collector area and storage volume are large enough. Complete reliance on a solar hot water system for whole-house heating is usually unrealistic in cold seasons without auxiliary heat.
A solar hot water system can be combined with a heat pump to create a more stable year-round hot water solution. Solar thermal energy can supply heat during sunny periods, while the heat pump supports demand when solar input is insufficient. This combined approach is useful for commercial solar hot water system projects with continuous daily demand.
The right solar hot water system must match local weather conditions and water chemistry. Warm climates with clean water may support direct systems, while freezing regions usually require indirect closed-loop designs. Hard water can create scale inside a solar hot water system, so indirect heat exchange and water treatment may be necessary.
A solar hot water system should be sized according to real hot water demand, not only available roof area. Residential sizing depends on household habits, while commercial sizing must consider peak usage, occupancy rate, laundry demand, kitchen load, and operating schedule. If a solar hot water system is undersized, backup heating will run too often; if oversized, overheating risk can increase.
Collector space, tank location, pipe routing, roof structure, and maintenance access all affect solar hot water system design. A short and insulated pipe route reduces heat loss between collectors and storage. In larger commercial solar hot water system projects, roof layout and equipment room planning should be considered together.
A solar hot water system is a practical way to use solar thermal energy for daily hot water while reducing reliance on electricity, gas, or oil. The best design depends on system type, collector choice, climate, water quality, roof conditions, hot water demand, backup heating, and maintenance planning. Direct systems may suit warm areas, while an indirect solar hot water system is often more stable for cold climates, hard-water regions, and commercial projects. For projects requiring indirect solar water heating solutions, Changzhou Raven New Energy technology Co.,Ltd. can be considered during system planning, product selection, replacement, or upgrade evaluation.
A solar hot water system is equipment that uses solar collectors to capture heat from sunlight and transfer it to water. It usually includes collectors, a storage tank, controls, circulation parts, and backup heating. The main purpose of a solar hot water system is to provide hot water while reducing conventional energy use.
A solar hot water system can still collect some heat on cloudy days, but output is lower than on sunny days. The storage tank may provide previously heated water if the system has enough capacity. When solar input is not enough, the backup heater supports the solar hot water system.
An indirect solar hot water system is often better in cold climates or areas with hard water. Its closed loop separates potable water from the collector circuit and allows antifreeze protection. However, the best solar hot water system still depends on climate, budget, installation conditions, and usage demand.
