| Quantity: | |
|---|---|
WHP030-R4DC
Solaraven
8418619000
Monoblock heat pump for residential house heating and cooling
Monoblock heat pump is a multi-functional residential heat pump works for domestic hot water, house heating and cooling. It adopt with EVI technology ( Enhanced vapor injection), can work in ambient temperature : -30~45℃.
Brand rotary compressor and DC inverter brushless fans enable the units to run quietly. Smart control with LCD controller, wifi online monitoring& intelligent protections.
Power supply: 220V~240V/50HZ, or 380V~420V/50HZ/3N.
Refrigerant: R32 efficiently works even in small volume compared to exsiting R410A refrigerant , which decrease the potential hazard of global warming, furthermore R32 is easy to recycle.
Max heating capacity: 11KW~27KW
Max cooling capacity: 8KW~22KW

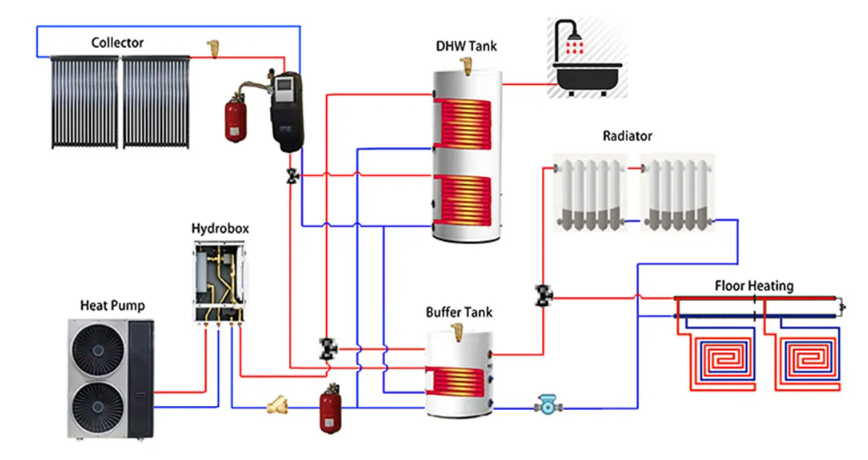

Monoblock heat pump solutions for house heating/cooling and domestic hot water in one system.

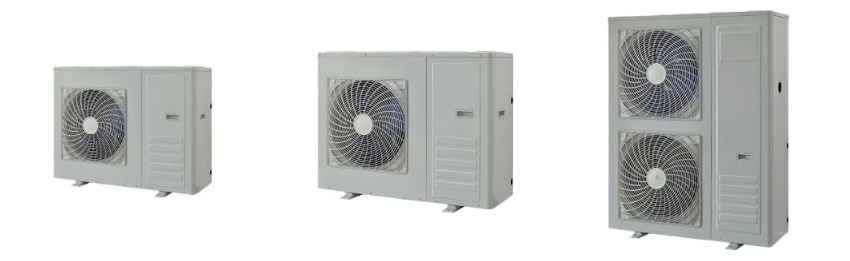

Monoblock residential heat pump specification
| Model | WHP030-R3DC+ | WHP045-R3DC+ | WHP060-R3DC+ |
| Power supply- Refrigerant | 220V-240V/50HZ-r32 | ||
| Heating performance: A7/6℃， W30/35℃ | |||
| Heating capacity(KW) | 10.8 | 15.4 | 21.1 |
| Rated input power(KW) | 2.44 | 3.38 | 4.72 |
| COP | 4.43 | 4.56 | 4.47 |
| Heating performance: A12℃，W41℃ | |||
| Heating capacity(KW) | 7.4 | 11 | 14.9 |
| Rated input power(KW) | 2.75 | 4.07 | 5.5 |
| COP | 2.69 | 2.7 | 2.71 |
| Heating performance: A 20℃，W41℃ | |||
| Heating capacity(KW) | 6.5 | 9 | 11.7 |
| Rated input power(KW) | 2.95 | 3.85 | 4.94 |
| COP | 2.2 | 2.34 | 2.37 |
| Heating performance: A 7/6℃ | |||
| Heating capacity(KW) | 9.65 | 14.2 | 18.3 |
| Rated imput power(KW) | 3.18 | 4.96 | 5.99 |
| COP | 3.04 | 2.86 | 3.06 |
| Cooling performance: A35/24℃， W12/7℃ | |||
| Cooling capacity | 8.3 | 12.2 | 15.5 |
| Rated input power(KW) | 2.76 | 4.1 | 5.03 |
| EER | 3.01 | 2.98 | 3.08 |
| Max input power(KW) | 3.4 | 5.5 | 6.6 |
| Max input current(A) | 16 | 25 | 30 |
| Compressor | Panasonic or Highly Twin Rotary | ||
| Core technology | Twin rotary -EVI | ||
| Fan | DC inverter brushless fans | ||
| Fan quantity | 1 | 1 | 2 |
| Heat exchanger | High efficiency plate type heat exchanger-SUS316 | ||
| Inlet/Outlet pipe size | DN25 | DN25 | DN25 |
| Noise(dB) | less than 56 | less than 60 | |
| Heating water temperature | 20~60℃ | ||
| Cooling water temperature | 5~20℃ | ||
| Operating ambient temperature | -30~45℃ | ||
| Dimension(mm) | 1100*400*850 | 1100*400*1010 | 1100*400*1420 |
| Weight(KG) | 72 | 105 | 125 |
