| Quantity: | |
|---|---|
DN20
Solaraven
8419901000

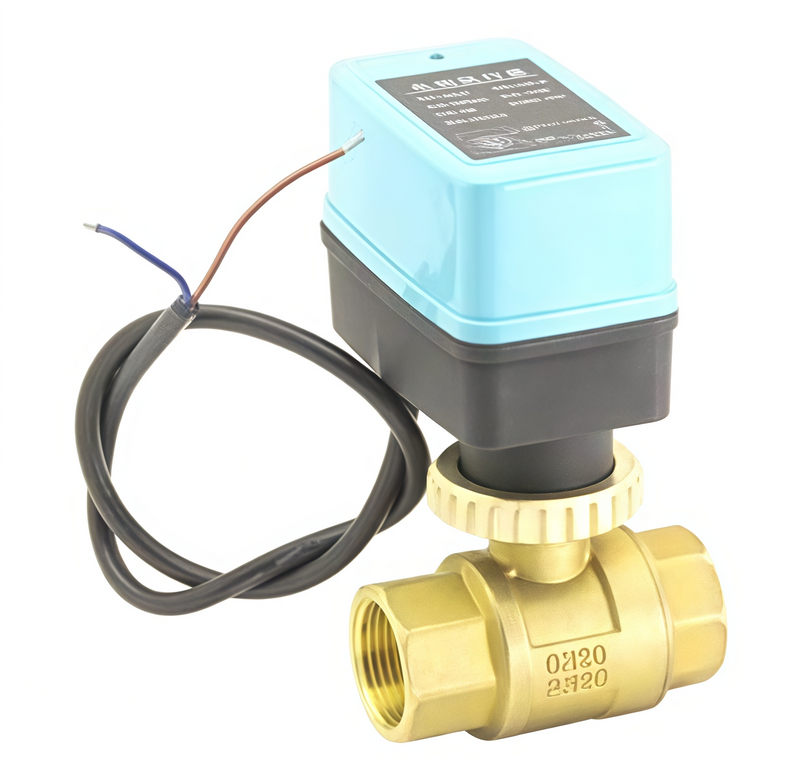

The electric motorized ball valve with actuator is an advanced automated fluid control device that uses an electric motor to regulate the flow of liquids or gases in pipelines. Combining a standard ball valve body with a precision electric actuator, it offers on/off control, flow modulation, and remote operation—making it a cornerstone of modern industrial and home automation systems. With a maximum working pressure of 1.0MPa and a service life of up to 100,000 switching cycles, this valve is engineered for efficiency, durability, and versatility. It adapts to a wide range of media, from drinking water to corrosive chemicals, and supports multiple voltage options, ensuring compatibility with diverse systems.
Equipped with a microcomputer-controlled system, the valve consumes minimal power (operating current ≤300mA at 1.0MPa). An LED indicator clearly shows the valve’s on/off status, while built-in limit switches cut power once the target position is reached—enhancing energy efficiency and extending battery life.
With a valve diameter 4 times larger than traditional solenoid valves, the electric ball valve minimizes the risk of scale buildup and clogging. This design ensures smooth flow even for impure media, reducing maintenance frequency and improving system reliability.
The valve’s robust construction and DC motor drive enable up to 100,000 switching cycles. High-quality materials (brass, stainless steel 304/316, UPVC/CPVC) resist corrosion and wear, ensuring stable performance in harsh environments.
Available in voltage options including DC3-6V, DC9-24V, AC110V, and AC220V, the valve fits various power systems. Size ranges from DN8 to DN100mm, catering to both small-scale home use and large industrial applications. It also holds an IP65 protection rating, ensuring dust and water resistance.
Parameter | Details |
Model | DN20 |
Brand | Solaraven |
Code | 8419901000 |
Maximum Working Pressure | 1.0MPa |
Rated Voltage | DC3-6V, DC9-24V, AC110V, AC220V |
Maximum Working Current | 300mA |
Fluid Temperature Range | 0-85℃ |
On/Off Response Time | 3 seconds |
Size Range | DN8-DN100mm |
Protection Rating | IP65 |
Operation Type | On/off (partial rotation for flow modulation optional) |
Valve Body Materials | Brass, stainless steel (304/316), UPVC, CPVC |
Actuator Drive | DC motor |
Service Life | Up to 100,000 switching cycles |
Widely used in heating, ventilation, and air conditioning systems, the valve controls the flow of hot/cold water and glycol solutions. It enables precise temperature regulation for different zones, improving energy efficiency and user comfort.
Essential for automated water purification and distribution, the valve performs shutoff, flow switching, and media management. Its corrosion-resistant materials make it suitable for treating drinking water, wastewater, and chemical solutions.
Integrates seamlessly with smart home systems for automated water shutoff, irrigation control, and fire protection. Remote operation allows users to manage the valve via mobile devices, enhancing convenience and safety.
In chemical processing, oil and gas, food and beverage, and pharmaceutical industries, the valve provides precise, remote flow control for corrosive, hazardous, or high-purity media. Its durable design withstands extreme industrial conditions.
Ideal for marine systems, brewing equipment, and RV/trailer homes. The compact size, low power consumption, and reliable performance make it suitable for mobile or harsh environments.
The 90-degree quarter-turn operation ensures fast response (3 seconds on/off), while the motor-driven design eliminates manual intervention. The valve’s tight seal prevents leaks, ensuring consistent performance in critical applications.
With a slim, compact design, the valve is easy to install in tight spaces. It supports standard pipeline connections and is compatible with most automation controllers, reducing integration costs.
Multiple valve body material options (stainless steel 304/316, UPVC) handle diverse media, including corrosive chemicals and saltwater. The robust construction resists wear and tear, extending service life.
Supports multiple voltages and sizes, making it suitable for residential, commercial, and industrial use. The optional flow modulation function adds flexibility for applications requiring precise flow control.
Upgrade your fluid control system with the electric motorized ball valve with actuator—the reliable, efficient choice for automation. Whether for HVAC, water treatment, smart homes, or industrial processes, this valve delivers precision, durability, and convenience. Check our in-stock options (100 units available) and click "Inquire" for technical support or bulk pricing. Don’t miss out—click "Add to Basket" now to enhance your system’s performance and reduce operational costs!
